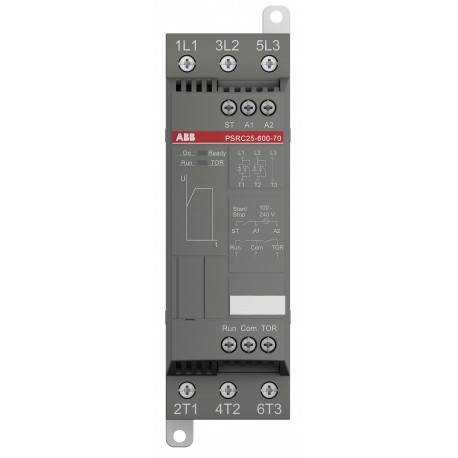

1SFA896208R7000 ABB PSRC25-600-70 SOFT COMPRESSOR WIRE
1SFA896208R7000
896208
ABB
1 Pcs.
PSRC25-600-70 SOFT COMPRESSOR WIRE
PSRC25-600-70 ARR. SOFT FOR COMPRESSOR
PSRC25-600-70 Softstarter - 25 A - 208 ... 600 V AC
Automation > Soft starter
Soft Starters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Optimized for compressor installations, this 1SFA896208R7000 ABB soft starter delivers reliable ramp-up control and operational protection for demanding pneumatic and fluid pumping systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85371091
- Data Sheet, Technical Information: 1SFC132012C0201
- Instructions and Manuals: 1SFC132042M0001
- Instructions and Manuals (Part 3): 1SFC132060M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC172771_EPLAN
- Wiring Diagram: N/A
- Product Net Width: 128 mm
- Product Net Height: 160 mm
- Product Net Depth / Length: 45 mm
- Product Net Weight: 0.6 kg
- Rated Operational Voltage: 208 ... 600 V AC Rated Control Supply Voltage (U s ): 100 ... 240 V AC
- Rated Control Circuit Voltage (U c ): 24 V DC
- Rated Frequency (f): 50/60 Hz
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC132012C0201 |
| Instructions and Manuals | 1SFC132042M0001 |
| Instructions and Manuals (Part 3) | 1SFC132060M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC172771_EPLAN |
| Wiring Diagram | N/A |
| Dimensions | |
| Product Net Width | 128 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 45 mm |
| Product Net Weight | 0.6 kg |
| Technical | |
| Rated Operational Voltage | 208 ... 600 V AC |
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 5.5 kW |
| (400 V) 11 kW | |
| (500 V) 15 kW | |
| Rated Operational Current - In-Line Connection (Ie) | 25 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS132 20 ... 25 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | Fixed setting |
| Fixed setting | |
| Initial Voltage During Start | Fixed setting |
| Step Down Voltage Special Ramp | Fixed setting |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Rigid 1 x 0.75 ... 2.5 mm² |
| Rigid 2 x 0.75 ... 1.5 mm² | |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m |
| Main Circuit 2.3 N·m | |
| Supply Circuit 0.6 N·m | |
| Product Main Type | PSRC25 |
| Function | Soft start with voltage ramp |
| Soft stop with voltage ramp | |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 7.5 Hp |
| (220 ... 240 V AC) Three Phase 7.5 Hp | |
| (440 ... 480 V AC) Three Phase 15 Hp | |
| (550 ... 600 V AC) Three Phase 20 Hp | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb |
| Main Circuit 20.4 | |
| Supply Circuit 5.3 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006481 |
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2006010304208086 |
| Declaration of Conformity - CCC | 2020980304001088 |
| Declaration of Conformity - CE | 2CMT003878 |
| Container Information | |
| Package Level 1 Width | 137 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 176 mm |
| Package Level 1 Gross Weight | 0.7 kg |
| Package Level 1 EAN | 7320500465523 |
| Package Level 1 Units | box 1 piece |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000640 - Soft starter |
| ETIM 8 | EC000640 - Soft starter |
| ETIM 9 | EC000640 - Soft starter |
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4740 >> Soft starter |
