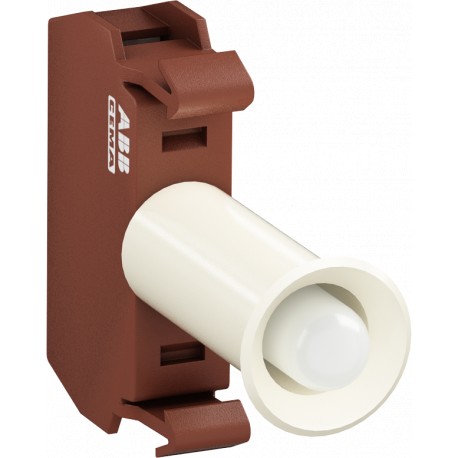

1SFA197003R1014 ABB Led Block P9PLNVDL
1SFA197003R1014
197003
ABB
1 Pcs.
Automation > Lamp holder block for control circuit devices
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A LED block functions as an internal illumination element mounted behind operator control devices to provide clear visual feedback on machine panels. The Abb 1SFA197003R1014 configuration is designed to illuminate pushbuttons and indicator lights within automated systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8539520000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 9.8 mm
- Product Net Height: 39.5 mm
- Product Net Depth / Length: 56 mm
- Product Net Weight: 0.02 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: Blue
- Illumination: Illuminated
- Lamp Type: 24 VACDC, Integrated LED
- Function: Permanent
- Mounting Type: Front mounting
- Pollution Degree: 3
- Rated Frequency (f): 50 / 60 Hz
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8539520000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 9.8 mm |
| Product Net Height | 39.5 mm |
| Product Net Depth / Length | 56 mm |
| Product Net Weight | 0.02 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Blue |
| Illumination | Illuminated |
| Lamp Type | 24 VACDC, Integrated LED |
| Function | Permanent |
| Mounting Type | Front mounting |
| Pollution Degree | 3 |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 V ACDC V |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm² |
| Flexible with Ferrule 2 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | |
| Flexible 1 x 0.75 ... 2.5 mm² | |
| Flexible 2 x 0.75 ... 2.5 mm² | |
| Solid 1 x 0.75...2.5 mm² | |
| Solid 2 x 0.75...2.5 mm² | |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | 1x 18...14 AWG |
| 2x 18...14 AWG | |
| Environmental | |
| Degree of Protection | Terminals IP20 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005874 |
| CQC Certificate | CQC2019010304237361 |
| CSA Certificate | 2CMT2019-005868 |
| cULus Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CCC | 2020980304001528 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 180 mm |
| Package Level 1 Gross Weight | 0.02 kg |
| Package Level 1 EAN | 7320500523742 |
| External Classifications and Standards | |
| ETIM 7 | EC000204 - Lamp holder block for control circuit devices |
| ETIM 8 | EC000204 - Lamp holder block for control circuit devices |
| eClass | V11.0 : 27371209 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 2314960 |
