1SFA193020R9006 ABB SELECTOR SWITCH P9MSCZ5A01
1SFA193020R9006
193020
ABB
1 Pcs.
Automation > Front element for selector switch
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

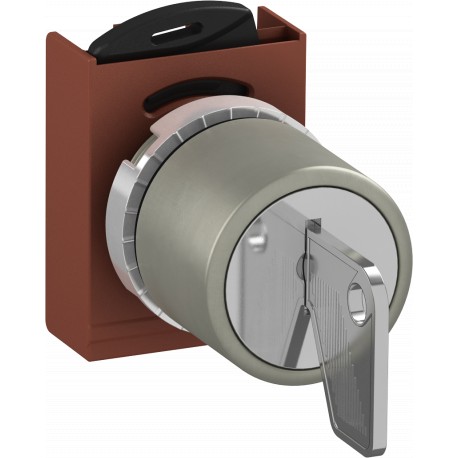

ABB part 1SFA193020R9006 is a P9MSCZ5A01 key-operated selector switch built for demanding industrial control environments where secure access is required. Such components provide dependable manual mode selection while restricting operational changes to authorized operators.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 29.7 mm
- Product Net Height: 44.5 mm
- Product Net Depth / Length: 68.4 mm
- Product Net Weight: 0.12 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: Black/Key=metal
- Actuator Type: Key
- Bezel Material: Metal
- Illumination: Non-illuminated
- Function: Maintained/Momentary
- Sub-Function: 3-position
- Sub-Function 2: CAM Z
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 29.7 mm |
| Product Net Height | 44.5 mm |
| Product Net Depth / Length | 68.4 mm |
| Product Net Weight | 0.12 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Black/Key=metal |
| Actuator Type | Key |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Maintained/Momentary |
| Sub-Function | 3-position |
| Sub-Function 2 | CAM Z |
| Maintained Positions | A, B |
| Spring Return From | C to B |
| Key Removal Positions | Position A Only |
| Key Code | Key code 01 |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3 | |
| Type3R | |
| Type3S | |
| Type4 | |
| Type4X | |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 113 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.12 kg |
| Package Level 1 EAN | 7320500523681 |
| External Classifications and Standards | |
| ETIM 7 | EC000222 - Front element for selector switch |
| ETIM 8 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| IDEA Granular Category Code (IGCC) | 5215 >> Selector Switch Complete Assemblies |
| E-Number (Finland) | 2314945 |
