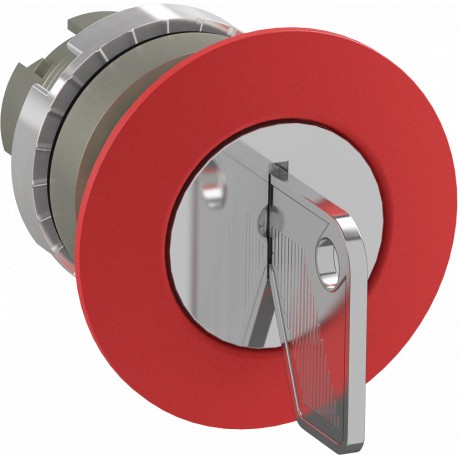

1SFA192000R9001 ABB Emergency mushroom with P9MEC4RN01 key
1SFA192000R9001
192000
ABB
1 Pcs.
Automation > Front element for push button
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for safety applications, the ABB 1SFA192000R9001 emergency mushroom switch incorporates a key release mechanism to restrict unauthorized reset actions. Emergency stop devices are critical safety components deployed on industrial machinery to immediately halt operations during hazardous situations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 40 mm
- Product Net Height: 44.5 mm
- Product Net Depth / Length: 67.9 mm
- Product Net Weight: 0.09 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: Red
- Actuator Type: Mushroom 40 mm
- Illumination: Non-illuminated
- Function: Maintained
- Sub-Function: Key release
- Key Code: Key code 01
- Enclosure Type NEMA: Type1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 44.5 mm |
| Product Net Depth / Length | 67.9 mm |
| Product Net Weight | 0.09 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Red |
| Actuator Type | Mushroom 40 mm |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Key release |
| Key Code | Key code 01 |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3 | |
| Type3R | |
| Type3S | |
| Type4 | |
| Type4X | |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 113 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.09 kg |
| Package Level 1 EAN | 7320500523520 |
| External Classifications and Standards | |
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| ETIM 8 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Sweden) | 3705893 |
