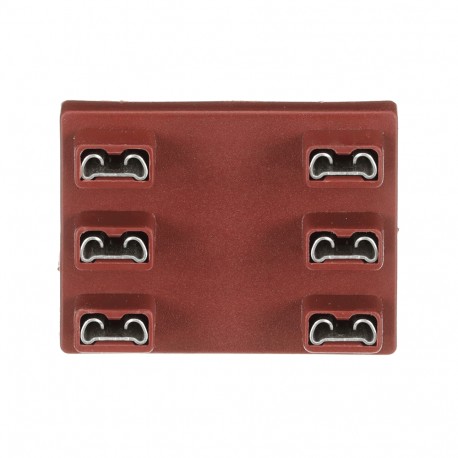

1SFA188804R8000 ABB CIRCUIT ADAPTER
1SFA188804R8000
188804
ABB
1 Pcs.
Automation > Accessories/spare parts for command devices
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SFA188804R8000 ABB circuit adapter is a specialized component used within modular control panel assemblies to mechanically and electrically link control devices. These hardware elements typically support the arrangement and secure integration of switches, pilot lights, and operator interfaces in industrial enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8538909999
- Product Main Type: P9A
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 39 mm
- Product Net Depth / Length: 19 mm
- Product Net Height: 29 mm
- Product Net Weight: 0.051 kg
- Color: Brown
- Standards: CAN/CSA C22.2 No.14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508
- Suitable For: P9B10FN
- Suitable for Product Class: Pilot Devices
- Ambient Air Temperature: Operation -30 ... 70 °C
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | P9A |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 39 mm |
| Product Net Depth / Length | 19 mm |
| Product Net Height | 29 mm |
| Product Net Weight | 0.051 kg |
| Technical | |
| Color | Brown |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508 |
| Suitable For | P9B10FN |
| P9B01FN | |
| Suitable for Product Class | Pilot Devices |
| Environmental | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | box 5 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 80 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.255 kg |
| Package Level 1 EAN | 7320500518991 |
| External Classifications and Standards | |
| eClass | V11.0 : 27060313 |
| E-Number (Finland) | 2307585 |
| ETIM 7 | EC002024 - Accessories for control circuit devices |
| ETIM 8 | EC002024 - Accessories/spare parts for command devices |
| ETIM 9 | EC001531 - Busbar adapter |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
