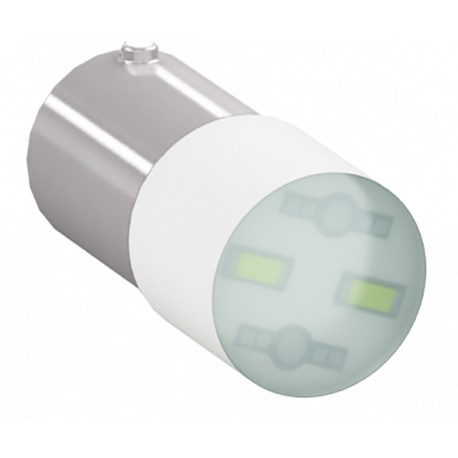

1SFA187191R1045 ABB 60V White Led Lamp
1SFA187191R1045
187191
ABB
1 Pcs.
Automation > Indication- and signalling lamp
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This ABB white LED lamp offers robust, low-maintenance illumination for panel-mounted pilot devices and switchgear status indicators. Solid-state indicator lamps deliver high resistance to mechanical shock and vibration within demanding industrial plants.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8539500000
- Product Main Type: BA9S
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 11 mm
- Product Net Depth / Length: 25.5 mm
- Product Net Height: 11 mm
- Product Net Weight: 0.002 kg
- Color: White
- Function: BA9S socket
- Illumination: Illuminated
- Lamp Type: LED 60 V ACDC
- Rated Current (I n ): 10 mA
- Rated Operational Voltage: 60 V AC/DC
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8539500000 |
| Product Main Type | BA9S |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 11 mm |
| Product Net Depth / Length | 25.5 mm |
| Product Net Height | 11 mm |
| Product Net Weight | 0.002 kg |
| Technical | |
| Color | White |
| Function | BA9S socket |
| Illumination | Illuminated |
| Lamp Type | LED 60 V ACDC |
| Rated Current (In) | 10 mA |
| Rated Operational Voltage | 60 V AC/DC |
| Service Life | 100000 HUR |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508 |
| Environmental | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CQC Certificate | CQC2013010304650811 |
| CSA Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CCC | 2020980304001860 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | bag 5 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 0.01 kg |
| Package Level 1 EAN | 7320500517901 |
| External Classifications and Standards | |
| eClass | V11.0 : 27110631 |
| ETIM 6 | EC000399 - Indication- and signalling lamp |
| ETIM 7 | EC000399 - Indication- and signalling lamp |
| ETIM 8 | EC000399 - Indication- and signalling lamp |
| ETIM 9 | EC000399 - Indication- and signalling lamp |
| IDEA Granular Category Code (IGCC) | 3058 >> Light emitting diode LED lamp |
| UNSPSC | 39101628 |
