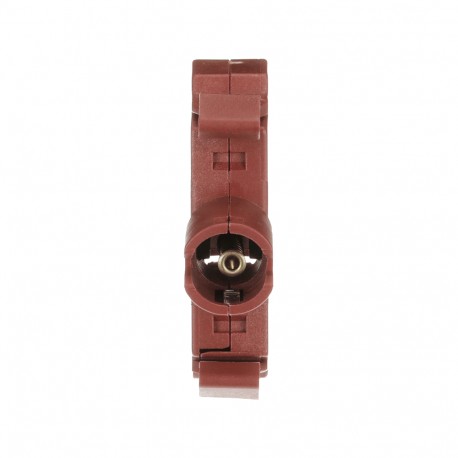

1SFA187055R1300 ABB FASTON DIRECT LAMP BLOCK
1SFA187055R1300
187055
ABB
1 Pcs.
Automation > Lamp holder block for control circuit devices
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SFA187055R1300 lamp block provides the physical housing and electrical interface for pilot lights and illuminated operators in control systems. These blocks mount behind panel fronts to distribute power safely to compatible signaling lamps.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536619090
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 9.3 mm
- Product Net Height: 36.3 mm
- Product Net Depth / Length: 39.4 mm
- Product Net Weight: 0.013 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: Brown
- Illumination: Illuminated
- Lamp Type: Lamp block for Ba9s socket for max 2W 380 V AC/DC LED
- Mounting Type: Front mounting
- Rated Frequency (f): 50 / 60 Hz
- Rated Operational Voltage: Maximum 380 V
- Connecting Capacity: Flexible with Ferrule 1 x 0.75...2.5 mm²
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 9.3 mm |
| Product Net Height | 36.3 mm |
| Product Net Depth / Length | 39.4 mm |
| Product Net Weight | 0.013 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Brown |
| Illumination | Illuminated |
| Lamp Type | Lamp block for Ba9s socket for max 2W 380 V AC/DC LED |
| Mounting Type | Front mounting |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 380 V |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm² |
| Flexible with Ferrule 2 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | |
| Flexible 1 x 0.75 ... 2.5 mm² | |
| Flexible 2 x 0.75 ... 2.5 mm² | |
| Solid 1 x 0.75...2.5 mm² | |
| Solid 2 x 0.75...2.5 mm² | |
| Connection Type | Faston |
| Terminal Type | Faston |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | 1x 18...14 AWG |
| 2x 18...14 AWG | |
| Environmental | |
| Degree of Protection | Terminals IP20 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005874 |
| CQC Certificate | CQC2013010304650811 |
| CSA Certificate | 2CMT2019-005868 |
| cULus Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CCC | 2020980304001860 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 0.013 kg |
| Package Level 1 EAN | 7320500522950 |
| External Classifications and Standards | |
| ETIM 7 | EC000204 - Lamp holder block for control circuit devices |
| ETIM 8 | EC000204 - Lamp holder block for control circuit devices |
| eClass | V11.0 : 27371209 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 2314729 |
| E-Number (Sweden) | 3705918 |
