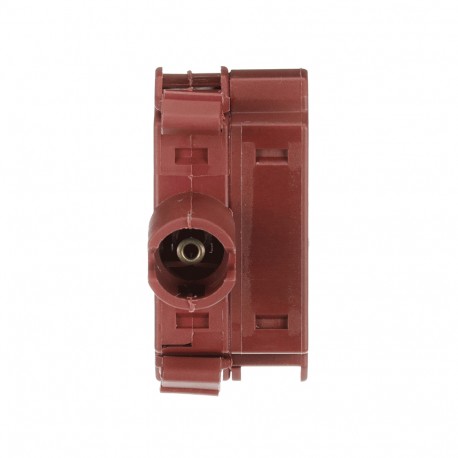

ABB 1SFA187027R8000 1SFA187027R8000 ABB DIRECT TEST LAMP BLOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA187027R8000 ABB DIRECT TEST LAMP BLOCK

1SFA187027R8000

187027

ABB

1 Pcs.

DIRECT TEST LAMP BLOCK P9PDTV0 Lamp Block

Automation > Lamp holder block for control circuit devices
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A direct test lamp block such as the Abb 1SFA187027R8000 enables electrical testing of indicator lights within control panels without altering live system wiring. These blocks are commonly installed behind push buttons and signal towers to facilitate routine maintenance checks and safety verifications. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536619090
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Product Net Width: 9.5 mm
  • Product Net Height: 36.3 mm
  • Product Net Depth / Length: 39.5 mm
  • Product Net Weight: 0.018 kg
  • Ambient Air Temperature: Operation -30 ... 70 °C
  • Color: Brown
  • Illumination: Illuminated
  • Lamp Type: Lamp test block for Ba9s socket for max 2W 380 V AC/DC LED
  • Mounting Type: Front mounting
  • Rated Frequency (f): 50 / 60 Hz
  • Rated Operational Voltage: Maximum 380 V
  • Connecting Capacity: Flexible with Ferrule 1 x 0.75...2.5 mm²

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536619090
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width9.5 mm
Product Net Height36.3 mm
Product Net Depth / Length39.5 mm
Product Net Weight0.018 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorBrown
IlluminationIlluminated
Lamp TypeLamp test block for Ba9s socket for max 2W 380 V AC/DC LED
Mounting TypeFront mounting
Rated Frequency (f)50 / 60 Hz
Rated Operational VoltageMaximum 380 V
Connecting CapacityFlexible with Ferrule 1 x 0.75...2.5 mm²
Flexible with Ferrule 2 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection TypeScrew Clamp
Terminal TypeScrew Terminals
Tightening Torque0.9 N·m
Wire Stripping Length8 mm
Technical UL/CSA
Connecting Capacity UL/CSA1x 18...14 AWG
2x 18...14 AWG
Environmental
Degree of ProtectionTerminals IP20
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005874
CQC CertificateCQC2019010304237361
CSA Certificate2CMT2019-005868
cULus Certificate2CMT2019-005868
Declaration of Conformity - CCC2020980304001528
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width120 mm
Package Level 1 Depth / Length50 mm
Package Level 1 Height180 mm
Package Level 1 Gross Weight0.018 kg
Package Level 1 EAN7320500522943
External Classifications and Standards
ETIM 7EC000204 - Lamp holder block for control circuit devices
ETIM 8EC000204 - Lamp holder block for control circuit devices
eClassV11.0 : 27371209
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Finland)2314728
E-Number (Sweden)3705939
