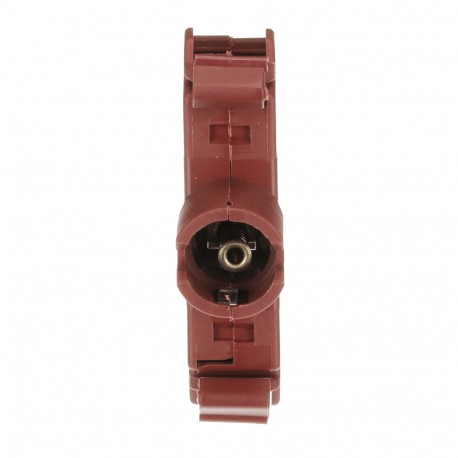

ABB 1SFA187020R1080 1SFA187020R1080 ABB BLOCK LAMP DIRECT SCREW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA187020R1080 ABB BLOCK LAMP DIRECT SCREW

1SFA187020R1080

187020

ABB

1 Pcs.

BLOCK LAMP DIRECT SCREW FULL VOLTAGE LAMP BLOCK SCREW MAX 380 V AC/DC

Automation > Lamp holder block for control circuit devices
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
P9PDNV0
Product ID:
1SFA187020R1080
EAN:
7320500522936
Catalog Description:
LAMP BLOCK P9PDNV0
Long Description:
FULL VOLTAGE LAMP BLOCK SCREW MAX 380 V AC/DC
\n

Ordering

EAN:
7320500522936
Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536619090

Dimensions

Product Net Width:
9.5 mm
Product Net Height:
36.3 mm
Product Net Depth / Length:
39.5 mm
Product Net Weight:
0.01 kg

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
80 mm
Package Level 1 Height:
120 mm
Package Level 1 Depth / Length:
50 mm
Package Level 1 Gross Weight:
0.01 kg
Package Level 1 EAN:
7320500519271
Package Level 2 Units:
box 10 piece
Package Level 2 Width:
90 mm
Package Level 2 Height:
85 mm
Package Level 2 Depth / Length:
125 mm

Environmental

RoHS Status:
Following EU Directive 2015/863 July 22, 2019 (RoHS 3)

Additional Information

Color:
Brown
Connection Type:
Screw Clamp
Degree of Protection:
Terminals IP2X
Illumination:
Illuminated
Lamp Type:
Lamp block for Ba9s socket for max 2W 380 V AC/DC LED
Mounting Type:
Front mounting
Product Main Type:
P9PD
Product Name:
Lamp Block
Rated Operational Voltage:
Maximum 380 V

Certificates and Declarations (Document Number)

BV Certificate:\n2CMT2019-005867
CB Certificate:\n2CMT2019-005874
CCC Certificate:\n2CMT2019-005872
CSA Certificate:\n2CMT2019-005868
Data Sheet, Technical Information:\n1SFC151007C02__
Declaration of Conformity - CE:\n2CMT2019-005862
DNV GL Certificate:\n2CMT2019-005876
Instructions and Manuals:\n1SFC151011M0201
RINA Certificate:\n2CMT2019-005866
RoHS Information:\n2CMT2019-005862
UL Certificate:\n2CMT2019-005868

Classifications

ETIM 7:
EC000204 - Lamp holder block for control circuit devices
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SFA187020R1080 Low-voltage industrial controls and switchgear (EC000204)
Feature Name Feature Value
Transformer integrated (EF001358) No
With integrated voltage decreasing resistor (EF001399) No
With light source (EF005905) Yes
With integrated diode (EF001400) Yes
Lamp holder (EF000048) None
Lamp type (EF002423) LED
Connection type auxiliary circuit (EF006820) Screw connection
Colour light source (EF001402) Other
Type of fastening (EF002442) Front fastening
