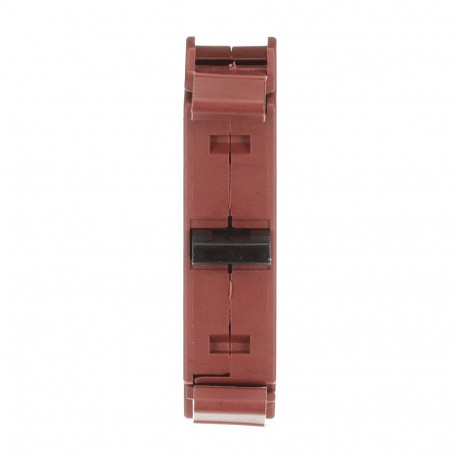

1SFA187001R8010 ABB SINGLE BLOCK 1NC SCREW
1SFA187001R8010
187001
ABB
1 Pcs.
Automation > Auxiliary contact block
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB single block auxiliary contact 1SFA187001R8010 is a front-mounting switching element designed to snap into modular control devices like pilot lights and switches. It delivers reliable signal control in industrial automation operator interfaces.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 9.6 mm
- Product Net Height: 39.5 mm
- Product Net Depth / Length: 27.7 mm
- Product Net Weight: 0.009 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: Brown
- Mounting Type: Front mounting
- Number of Auxiliary Contacts NC: 1
- Pollution Degree: 3
- Rated Insulation Voltage (U i ): 690 V
- Rated Impulse Withstand Voltage (U imp ): 4 kV
- Connecting Capacity: Flexible with Ferrule 1 x 0.75...2.5 mm²
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 9.6 mm |
| Product Net Height | 39.5 mm |
| Product Net Depth / Length | 27.7 mm |
| Product Net Weight | 0.009 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Brown |
| Mounting Type | Front mounting |
| Number of Auxiliary Contacts NC | 1 |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm² |
| Flexible with Ferrule 2 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | |
| Flexible 1 x 0.75 ... 2.5 mm² | |
| Flexible 2 x 0.75 ... 2.5 mm² | |
| Solid 1 x 0.75...2.5 mm² | |
| Solid 2 x 0.75...2.5 mm² | |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 10 mm |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | 1x 18...14 AWG |
| 2x 18...14 AWG | |
| Environmental | |
| Degree of Protection | Terminals IP20 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005873 |
| CQC Certificate | CQC2013010304650811 |
| CSA Certificate | 2CMT2019-005868 |
| cULus Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CCC | 2020980304001860 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 0.009 kg |
| Package Level 1 EAN | 7320500522851 |
| External Classifications and Standards | |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 2313794 |
| E-Number (Sweden) | 3705929 |
