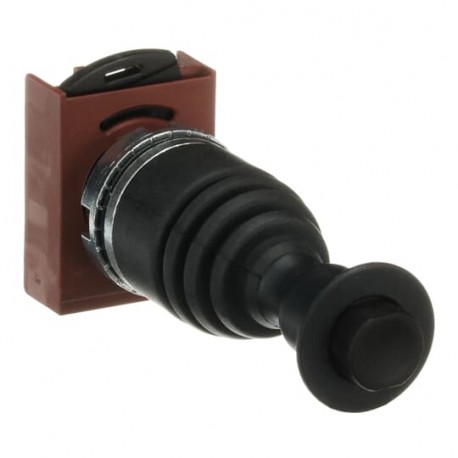

ABB 1SFA184712R9006 1SFA184712R9006 ABB JOYSTICK P9MMB2A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA184712R9006 ABB JOYSTICK P9MMB2A

1SFA184712R9006

184712

ABB

1 Pcs.

JOYSTICK#P9MMB2A P9MMB2A Joystick

Automation > Control switch, Joystick
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb joystick is a durable control component integrated into industrial switchboards to direct multi-axis machinery positioning. Personnel use these manual interface units to maintain precise control over complex automated systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536501990
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Product Net Width: 29.7 mm
  • Product Net Height: 44.5 mm
  • Product Net Depth / Length: 98.6 mm
  • Product Net Weight: 0.09 kg
  • Ambient Air Temperature: Operation -30 ... 70 °C
  • Color: Black
  • Actuator Type: Joystick with latching function
  • Bezel Material: Metal
  • Illumination: Non-illuminated
  • Function: Maintained/Momentary
  • Sub-Function: 2-position
  • Maintained Positions: D, B

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536501990
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width29.7 mm
Product Net Height44.5 mm
Product Net Depth / Length98.6 mm
Product Net Weight0.09 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorBlack
Actuator TypeJoystick with latching function
Bezel MaterialMetal
IlluminationNon-illuminated
FunctionMaintained/Momentary
Sub-Function2-position
Maintained PositionsD, B
Spring Return FromA to B
Enclosure Type NEMAType1
Type12
Type13
Type3
Type3R
Type3S
Type4
Type4X
Mechanical Durability0.5 million
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005872
CSA Certificate2CMT2019-005868
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width41 mm
Package Level 1 Depth / Length113 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.09 kg
Package Level 1 EAN7320500522653
External Classifications and Standards
ETIM 7EC000632 - Control switch, Joystick
ETIM 8EC000632 - Control switch, Joystick
eClassV11.0 : 27371404
UNSPSC39122227
IDEA Granular Category Code (IGCC)5280 >> Joystick switch or control
E-Number (Finland)2314784
