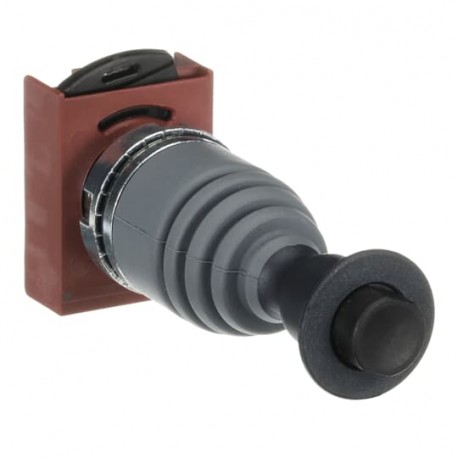

ABB 1SFA184709R9006 1SFA184709R9006 ABB JOYSTICK P9MMB2FG View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA184709R9006 ABB JOYSTICK P9MMB2FG

1SFA184709R9006

184709

ABB

1 Pcs.

JOYSTICK P9MMB2FG P9MMB2FG Joystick

Automation > Control switch, Joystick
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SFA184709R9006 joystick P9MMB2FG is an industrial control component utilized to manually direct machinery, select operating modes, or trigger directional commands in automated systems. These devices provide ergonomic operator feedback on control panels and operator consoles.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536501990
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Product Net Width: 29.7 mm
  • Product Net Height: 44.5 mm
  • Product Net Depth / Length: 98.6 mm
  • Product Net Weight: 0.09 kg
  • Ambient Air Temperature: Operation -30 ... 70 °C
  • Color: Grey
  • Actuator Type: Joystick with latching function
  • Bezel Material: Metal
  • Illumination: Non-illuminated
  • Function: Maintained
  • Sub-Function: 2-position
  • Maintained Positions: A, B, D

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536501990
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width29.7 mm
Product Net Height44.5 mm
Product Net Depth / Length98.6 mm
Product Net Weight0.09 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorGrey
Actuator TypeJoystick with latching function
Bezel MaterialMetal
IlluminationNon-illuminated
FunctionMaintained
Sub-Function2-position
Maintained PositionsA, B, D
Enclosure Type NEMAType1
Type12
Type13
Type3
Type3R
Type3S
Type4
Type4X
Mechanical Durability0.5 million
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005872
CSA Certificate2CMT2019-005868
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width41 mm
Package Level 1 Depth / Length113 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.09 kg
Package Level 1 EAN7320500522622
External Classifications and Standards
ETIM 7EC000632 - Control switch, Joystick
ETIM 8EC000632 - Control switch, Joystick
eClassV11.0 : 27371404
UNSPSC39122227
IDEA Granular Category Code (IGCC)5280 >> Joystick switch or control
