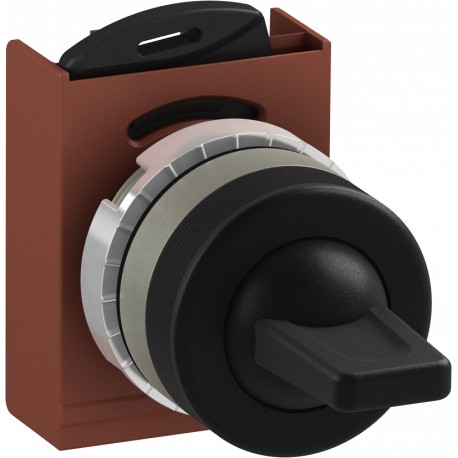

ABB 1SFA184695R9006 1SFA184695R9006 ABB TOGGLE SWITCH P9MCD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA184695R9006 ABB TOGGLE SWITCH P9MCD

1SFA184695R9006

184695

ABB

1 Pcs.

TOGGLE SWITCH#P9MCD P9MCD Toggle Switch

Automation > Front element for selector switch
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A toggle switch is a mechanical control component employed in electrical enclosures to manually manage circuit operations through a physical lever action. The ABB 1SFA184695R9006 delivers robust non-illuminated switching performance designed for industrial control environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536508000
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Product Net Width: 29.7 mm
  • Product Net Height: 44.5 mm
  • Product Net Depth / Length: 62.1 mm
  • Product Net Weight: 0.074 kg
  • Ambient Air Temperature: Operation -30 ... 70 °C
  • Color: Black
  • Actuator Type: Toggle switch
  • Bezel Material: Metal
  • Illumination: Non-illuminated
  • Function: Maintained
  • Sub-Function: 2-position
  • Sub-Function 2: CAM D

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width29.7 mm
Product Net Height44.5 mm
Product Net Depth / Length62.1 mm
Product Net Weight0.074 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorBlack
Actuator TypeToggle switch
Bezel MaterialMetal
IlluminationNon-illuminated
FunctionMaintained
Sub-Function2-position
Sub-Function 2CAM D
Maintained PositionsA, C
Enclosure Type NEMAType1
Type12
Type13
Type3
Type3R
Type3S
Type4
Type4X
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005872
CSA Certificate2CMT2019-005868
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width41 mm
Package Level 1 Depth / Length80 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.074 kg
Package Level 1 EAN7320500522554
External Classifications and Standards
ETIM 7EC000222 - Front element for selector switch
ETIM 8EC000222 - Front element for selector switch
eClassV11.0 : 27371213
UNSPSC39122211
IDEA Granular Category Code (IGCC)5200 >> Toggle switch
E-Number (Finland)2314703
E-Number (Sweden)3705869
