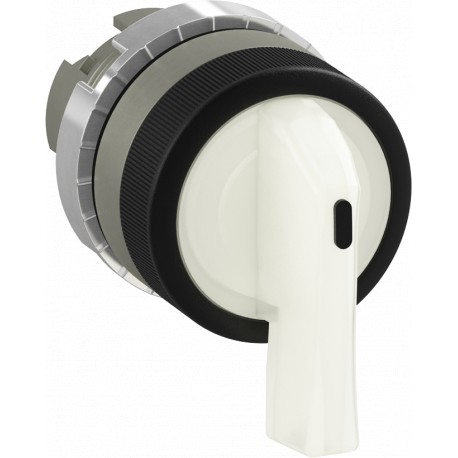

ABB 1SFA184657R9105 1SFA184657R9105 ABB SELECTOR SWITCH P9MSAZ0B View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA184657R9105 ABB SELECTOR SWITCH P9MSAZ0B

1SFA184657R9105

184657

ABB

1 Pcs.

SELECTOR SWITCH P9MSAZ0B P9MSAZ0B Selector Switch

Automation > Front element for selector switch
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width29.7 mm
Product Net Height46.6 mm
Product Net Depth / Length80.4 mm
Product Net Weight0.06 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorWhite
Actuator TypeLong handle
Bezel MaterialMetal
IlluminationIlluminated
FunctionMaintained
Sub-Function3-position
Sub-Function 2CAM Z
Maintained PositionsA, B, C
Enclosure Type NEMAType1
Type12
Type13
Type3
Type3R
Type3S
Type4
Type4X
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005872
CSA Certificate2CMT2019-005868
cULus Certificate2CMT2019-005868
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width41 mm
Package Level 1 Depth / Length80 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.06 kg
Package Level 1 EAN7320500522493
External Classifications and Standards
ETIM 7EC000222 - Front element for selector switch
ETIM 8EC000222 - Front element for selector switch
eClassV11.0 : 27371213
UNSPSC39122217
IDEA Granular Category Code (IGCC)5215 >> Selector Switch Complete Assemblies
E-Number (Finland)2307590

ETIM for 1SFA184657R9105 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 3
Type of control element (EF006976) Long turning handle
Suitable for lighting (EF001142) Yes
Colour control element (EF007167) White
Colour indicator light cap (EF007165) Other
Hole diameter (EF000079) 22 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Chrome
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X
