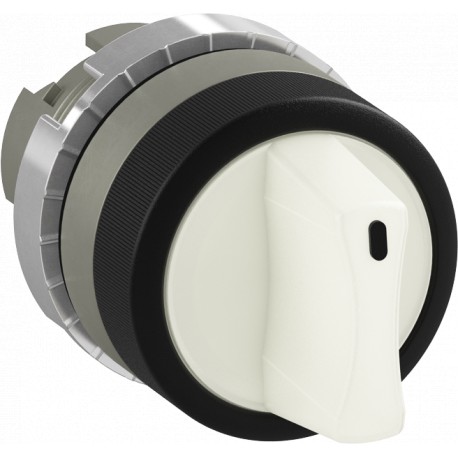

1SFA184607R9105 ABB SWITCH SELECTOR P9MSLZ0B
1SFA184607R9105
184607
ABB
1 Pcs.
Automation > Front element for selector switch
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb part number 1SFA184607R9105 is an illuminated selector switch designed for precise manual signal routing and status visualization in control desks. Operators rely on illuminated multi-position switches to govern complex automation routines and monitor machine status. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 29.7 mm
- Product Net Height: 44.5 mm
- Product Net Depth / Length: 80.7 mm
- Product Net Weight: 0.33 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: White
- Actuator Type: Short handle
- Bezel Material: Metal
- Illumination: Illuminated
- Function: Maintained
- Sub-Function: 3-position
- Sub-Function 2: CAM Z
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 29.7 mm |
| Product Net Height | 44.5 mm |
| Product Net Depth / Length | 80.7 mm |
| Product Net Weight | 0.33 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | White |
| Actuator Type | Short handle |
| Bezel Material | Metal |
| Illumination | Illuminated |
| Function | Maintained |
| Sub-Function | 3-position |
| Sub-Function 2 | CAM Z |
| Maintained Positions | A, B, C |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3 | |
| Type3R | |
| Type3S | |
| Type4 | |
| Type4X | |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| cULus Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 80 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.33 kg |
| Package Level 1 EAN | 7320500522288 |
| External Classifications and Standards | |
| ETIM 7 | EC000222 - Front element for selector switch |
| ETIM 8 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| IDEA Granular Category Code (IGCC) | 5215 >> Selector Switch Complete Assemblies |
| E-Number (Finland) | 2313798 |
