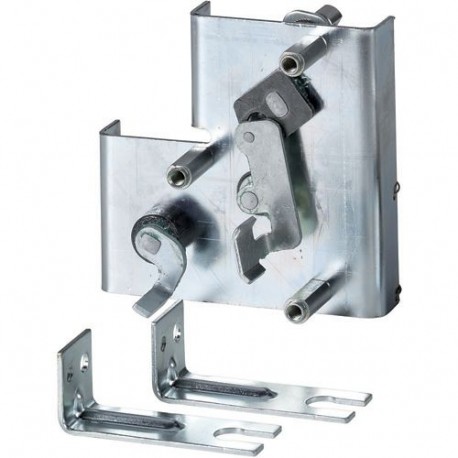

1SFA184402R9006 ABB SWITCH SELECTOR P9MSCD0K95
1SFA184402R9006
184402
ABB
1 Pcs.
Automation > Front element for selector switch
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SFA184402R9006 key selector switch offers secure, maintained manual control for industrial machinery and electrical enclosures. Technicians integrate this unit to regulate multi-state automation systems while restricting access strictly to authorized personnel holding the correct key.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 29.7 mm
- Product Net Height: 44.5 mm
- Product Net Depth / Length: 68.4 mm
- Product Net Weight: 0.125 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: Black/Key=metal
- Actuator Type: Key
- Bezel Material: Metal
- Illumination: Non-illuminated
- Function: Maintained
- Sub-Function: 2-position
- Sub-Function 2: CAM D
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 29.7 mm |
| Product Net Height | 44.5 mm |
| Product Net Depth / Length | 68.4 mm |
| Product Net Weight | 0.125 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Black/Key=metal |
| Actuator Type | Key |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 2-position |
| Sub-Function 2 | CAM D |
| Maintained Positions | A, C |
| Key Removal Positions | A, C |
| Key Code | Key code 95 |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3 | |
| Type3R | |
| Type3S | |
| Type4 | |
| Type4X | |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 113 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.125 kg |
| Package Level 1 EAN | 7320500521717 |
| External Classifications and Standards | |
| ETIM 7 | EC000222 - Front element for selector switch |
| ETIM 8 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| IDEA Granular Category Code (IGCC) | 5215 >> Selector Switch Complete Assemblies |
| E-Number (Finland) | 2307554 |
| E-Number (Sweden) | 3705867 |
