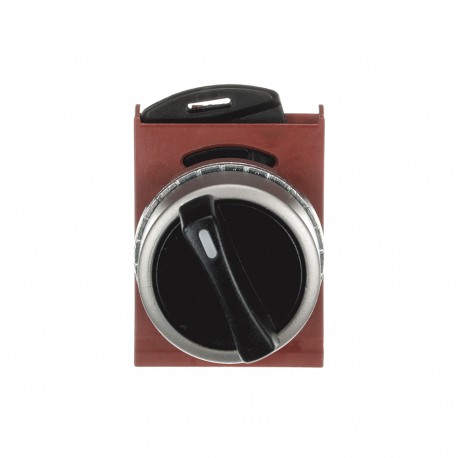

ABB 1SFA184340R9006 1SFA184340R9006 ABB SELECTOR SWITCH P9MSMX5N View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA184340R9006 ABB SELECTOR SWITCH P9MSMX5N

1SFA184340R9006

184340

ABB

1 Pcs.

SELECTOR SWITCH P9MSMX5N SELECTOR SWITCH 4-POS NON-ILLUMINATED SHORT HANDLE BLACK MAINTAINED/MOMENTARY

Automation > Front element for selector switch
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
P9MSMX5N
Product ID:
1SFA184340R9006
EAN:
7320500521540
Catalog Description:
SELECTOR SWITCH P9MSMX5N
Long Description:
SELECTOR SWITCH 4-POS NON-ILLUMINATED SHORT HANDLE BLACK MAINTAINED/MOMENTARY
\n

Ordering

EAN:
7320500521540
Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536501990

Dimensions

Product Net Width:
29.7 mm
Product Net Height:
44.5 mm
Product Net Depth / Length:
52.2 mm
Product Net Weight:
0.065 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
41 mm
Package Level 1 Height:
41 mm
Package Level 1 Depth / Length:
80 mm
Package Level 1 Gross Weight:
0.065 kg
Package Level 1 EAN:
7320500520093
Package Level 2 Units:
box 10 piece
Package Level 2 Width:
90 mm
Package Level 2 Height:
85 mm
Package Level 2 Depth / Length:
220 mm

Environmental

RoHS Status:
Following EU Directive 2015/863 July 22, 2019 (RoHS 3)

Additional Information

Actuator Type:
Short handle
Bezel Material:
Satin Chrome Metal
Color:
Black
Degree of Protection:
Front IP66
Function:
Maintained/Momentary
Illumination:
Non-illuminated
Maintained Positions:
A, B, C
Product Main Type:
P9MS
Product Name:
Selector Switch
Spring Return From:
D to C
Sub-Function:
4-position
Sub-Function 2:
CAM X

Certificates and Declarations (Document Number)

BV Certificate:\n2CMT2019-005867
CB Certificate:\n2CMT2019-005872
CCC Certificate:\n2CMT2019-005869
CSA Certificate:\n2CMT2019-005868
Data Sheet, Technical Information:\n1SFC151007C02__
Declaration of Conformity - CE:\n2CMT2019-005862
DNV GL Certificate:\n2CMT2019-005876
Instructions and Manuals:\n1SFC151011M0201
RINA Certificate:\n2CMT2019-005866
RoHS Information:\n2CMT2019-005862
UL Certificate:\n2CMT2019-005868

Classifications

ETIM 7:
EC000222 - Front element for selector switch
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SFA184340R9006 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 4
Type of control element (EF006976) Short thumb-grip
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Hole diameter (EF000079) 22 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) Yes
With front ring (EF006014) Yes
Material front ring (EF005972) Metal
Colour front ring (EF002429) Chrome
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X
