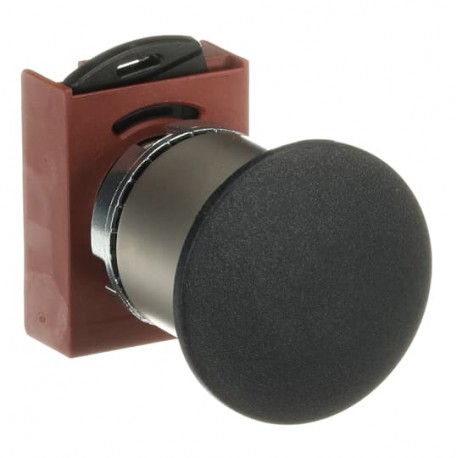

1SFA184061R9001 ABB PUSHB MUSHROOM P9MET4RN1
1SFA184061R9001
184061
ABB
1 Pcs.
Automation > Front element for push button
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB mushroom pushbutton serves as a prominent emergency or safety stop actuator on industrial machinery and safety control loops. Its large head allows operators to quickly strike the control point to halt dangerous equipment movements during an emergency. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 40 mm
- Product Net Height: 44.5 mm
- Product Net Depth / Length: 57 mm
- Product Net Weight: 0.069 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: Red
- Actuator Type: Mushroom 40 mm
- Illumination: Non-illuminated
- Function: Maintained
- Sub-Function: Pull release
- Enclosure Type NEMA: Type1
- Degree of Protection: Front IP66
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 44.5 mm |
| Product Net Depth / Length | 57 mm |
| Product Net Weight | 0.069 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Red |
| Actuator Type | Mushroom 40 mm |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Pull release |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3 | |
| Type3R | |
| Type3S | |
| Type4 | |
| Type4X | |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 80 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.069 kg |
| Package Level 1 EAN | 7320500521311 |
| External Classifications and Standards | |
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| ETIM 8 | EC000221 - Front element for push button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Finland) | 2307536 |
| E-Number (Sweden) | 3705843 |
