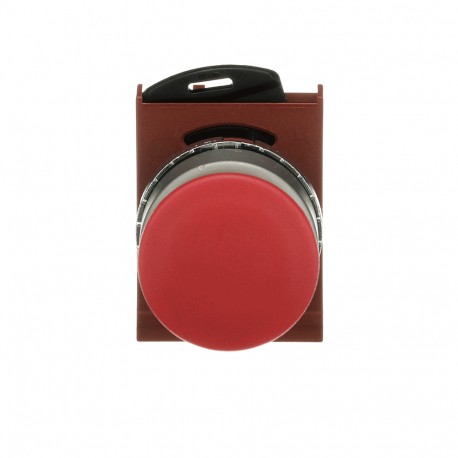

ABB 1SFA184031R9001 1SFA184031R9001 ABB PUSHB MUSHROOM P9MEM3RN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA184031R9001 ABB PUSHB MUSHROOM P9MEM3RN

1SFA184031R9001

184031

ABB

1 Pcs.

PUSHB MUSHROOM#P9MEM3RN P9MEM3RN Mushroom Pushbutton

Automation > Front element for push button
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

1SFA184031R9001 ABB pushb mushroom is a prominent emergency control device mounted on electrical panels to ensure rapid manual interruption of machine operations. Mushroom-style operators provide an oversized target for immediate activation during safety-critical events.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536508000
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Product Net Width: 29.7 mm
  • Product Net Height: 44.5 mm
  • Product Net Depth / Length: 51.8 mm
  • Product Net Weight: 0.06 kg
  • Ambient Air Temperature: Operation -30 ... 70 °C
  • Color: Red
  • Actuator Type: Mushroom 28 mm
  • Illumination: Non-illuminated
  • Function: Momentary
  • Enclosure Type NEMA: Type1
  • Degree of Protection: Front IP66
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width29.7 mm
Product Net Height44.5 mm
Product Net Depth / Length51.8 mm
Product Net Weight0.06 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorRed
Actuator TypeMushroom 28 mm
IlluminationNon-illuminated
FunctionMomentary
Enclosure Type NEMAType1
Type12
Type13
Type3
Type3R
Type3S
Type4
Type4X
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005872
CSA Certificate2CMT2019-005868
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width41 mm
Package Level 1 Depth / Length80 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.06 kg
Package Level 1 EAN7320500521182
External Classifications and Standards
ETIM 7EC001038 - Front element for mushroom push-button
ETIM 8EC001038 - Front element for mushroom push-button
eClassV11.0 : 27371210
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Finland)2307503
