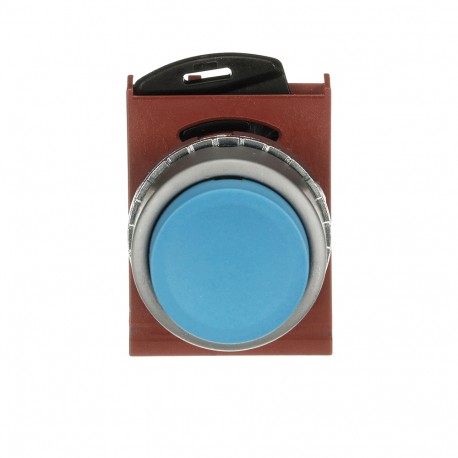

ABB 1SFA184016R9004 1SFA184016R9004 ABB Push button P9MPNLS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA184016R9004 ABB Push button P9MPNLS

1SFA184016R9004

184016

ABB

1 Pcs.

Push button P9MPNLS P9MPNLS Pushbutton

Automation > Front element for push button
Command and signaling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for robust industrial operator interfaces, the 1SFA184016R9004 ABB Push button P9MPNLS provides tactile command input in demanding manufacturing environments. Extended blue pushbuttons are frequently deployed for specific auxiliary functions and mode changes on control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536508000
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Product Net Width: 29.7 mm
  • Product Net Height: 44.5 mm
  • Product Net Depth / Length: 46.2 mm
  • Product Net Weight: 0.055 kg
  • Ambient Air Temperature: Operation -30 ... 70 °C
  • Color: Blue
  • Actuator Type: Extended
  • Bezel Material: Metal
  • Illumination: Non-illuminated
  • Function: Momentary
  • Enclosure Type NEMA: Type1
  • Degree of Protection: Front IP66

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width29.7 mm
Product Net Height44.5 mm
Product Net Depth / Length46.2 mm
Product Net Weight0.055 kg
Technical
Ambient Air TemperatureOperation -30 ... 70 °C
Storage -40 ... +70 °C
ColorBlue
Actuator TypeExtended
Bezel MaterialMetal
IlluminationNon-illuminated
FunctionMomentary
Enclosure Type NEMAType1
Type12
Type13
Type3
Type3R
Type3S
Type4
Type4X
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate2CMT2019-005867
CB Certificate2CMT2019-005872
CSA Certificate2CMT2019-005868
cULus Certificate1SAC200090H0001
Declaration of Conformity - CE2CMT2019-005862
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate2CMT2019-005876
RINA Certificate2CMT2019-005866
UL Certificate2CMT2019-005868
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width41 mm
Package Level 1 Depth / Length80 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.055 kg
Package Level 1 EAN7320500521151
External Classifications and Standards
ETIM 7EC000221 - Front element for push button
ETIM 8EC000221 - Front element for push button
eClassV11.0 : 27371210
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Finland)2307477
