1SFA184011R9001 ABB PUSHBUTTON P9MPNRS
1SFA184011R9001
184011
ABB
1 Pcs.
Automation > Front element for push button
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

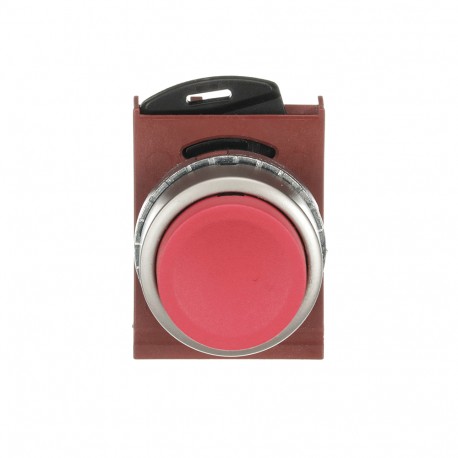

An ABB 1SFA184011R9001 P9MPNRS pushbutton features an extended red actuator housed in a robust metal bezel for industrial control panel integration. Extended pushbuttons allow fast visual identification and easy operator contact during critical machine tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 29.7 mm
- Product Net Height: 44.5 mm
- Product Net Depth / Length: 46.2 mm
- Product Net Weight: 0.062 kg
- Ambient Air Temperature: Operation -30 ... 70 °C
- Color: Red
- Actuator Type: Extended
- Bezel Material: Metal
- Illumination: Non-illuminated
- Function: Momentary
- Enclosure Type NEMA: Type1
- Degree of Protection: Front IP66
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 29.7 mm |
| Product Net Height | 44.5 mm |
| Product Net Depth / Length | 46.2 mm |
| Product Net Weight | 0.062 kg |
| Technical | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Color | Red |
| Actuator Type | Extended |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Momentary |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3 | |
| Type3R | |
| Type3S | |
| Type4 | |
| Type4X | |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| cULus Certificate | 1SAC200090H0001 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 80 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.062 kg |
| Package Level 1 EAN | 7320500521137 |
| External Classifications and Standards | |
| ETIM 7 | EC000221 - Front element for push button |
| ETIM 8 | EC000221 - Front element for push button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Finland) | 2307475 |
