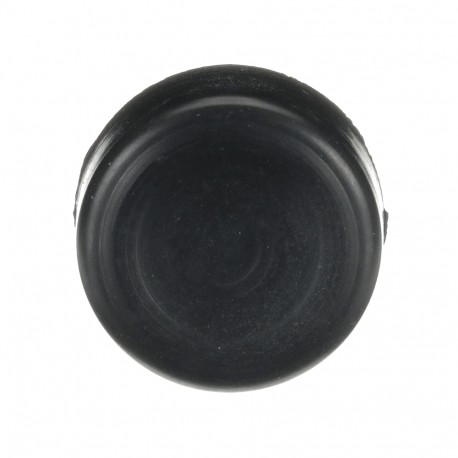

1SFA170190R8000 ABB NORMAL IMPELLER MEMBRANE, BLACK
1SFA170190R8000
170190
ABB
1 Pcs.
Automation > Protective cover for command devices
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as a flexible protective layer, this Abb NORMAL IMPELLER MEMBRANE, BLACK safeguards industrial pushbuttons from environmental contamination while allowing tactile actuation. Membrane components of this type are routinely installed on control desks across manufacturing facilities to ensure reliable switch operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8538909999
- Product Main Type: 080CP
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 29.8 mm
- Product Net Depth / Length: 15.7 mm
- Product Net Height: 29.8 mm
- Product Net Weight: 0.004 kg
- Color: Black
- Standards: CAN/CSA C22.2 No.14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508
- Suitable For: P9MPNNG
- Suitable for Product Class: Pilot Devices
- Ambient Air Temperature: Operation -30 ... 70 °C
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | 080CP |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 29.8 mm |
| Product Net Depth / Length | 15.7 mm |
| Product Net Height | 29.8 mm |
| Product Net Weight | 0.004 kg |
| Technical | |
| Color | Black |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508 |
| Suitable For | P9MPNNG |
| P9MPNNG* | |
| P9MPLNGD | |
| P9MPLNGV | |
| Suitable for Product Class | Pilot Devices |
| Environmental | |
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | 2CMT2019-005867 |
| CB Certificate | 2CMT2019-005872 |
| CSA Certificate | 2CMT2019-005868 |
| Declaration of Conformity - CE | 2CMT2019-005862 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 2CMT2019-005876 |
| RINA Certificate | 2CMT2019-005866 |
| UL Certificate | 2CMT2019-005868 |
| Container Information | |
| Package Level 1 Units | bag 5 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 0.02 kg |
| Package Level 1 EAN | 7320500518342 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371207 |
| E-Number (Finland) | 2307478 |
| E-Number (Sweden) | 3705825 |
| ETIM 7 | EC002040 - Protective cover for control circuit devices |
| ETIM 8 | EC002040 - Protective cap for command devices |
| ETIM 9 | EC002040 - Protective cap for command devices |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
