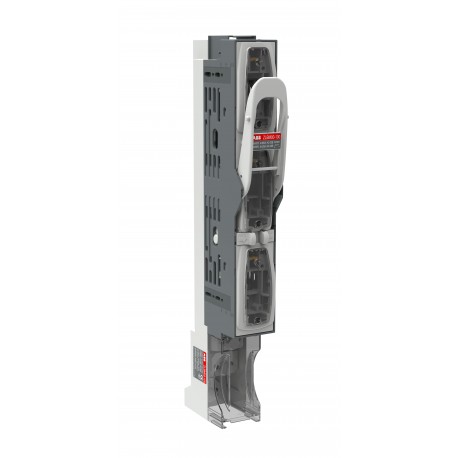

1SEP620150R3000 ABB Fuse disconnect ZLBM00-100-3P-M8
1SEP620150R3000
620150
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB fuse disconnect provides reliable load breaking and short-circuit protection for modern electrical enclosures and busbar installations. It serves as a critical disconnecting link in industrial power distribution networks to ensure operator safety during maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- End Of Life Disassembling Instructions: 9AKK108470A6420
- Environmental Product Declaration - EPD: 9AKK108469A0964
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 94.30 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SEC312023D0201
- Instructions and Manuals: 9AKK107680A2425
- Electrical Drawings: 9AKK108466A4607
- Environmental Product Declaration - EPD: 9AKK108469A0964
- Degree of Protection: Front IP30
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Bulgaria
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 9AKK108470A6420 |
| Environmental Product Declaration - EPD | 9AKK108469A0964 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 94.30 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312023D0201 |
| Instructions and Manuals | 9AKK107680A2425 |
| Electrical Drawings | 9AKK108466A4607 |
| 9AKK108466A4606 | |
| Environmental Product Declaration - EPD | 9AKK108469A0964 |
| Environmental | |
| Degree of Protection | Front IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Frame Size | Low |
| Product Net Width | 49 mm |
| Product Net Height | 409 mm |
| Product Net Depth / Length | 124 mm |
| Product Net Weight | 1.04 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 49 mm |
| Package Level 1 Depth / Length | 124 mm |
| Package Level 1 Height | 409 mm |
| Package Level 1 Gross Weight | 1.04 kg |
| Package Level 1 EAN | 7025840090519 |
| Technical | |
| Degree of Protection | Front IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Distance Between Phases | 100 mm |
| Electronic Fuse Monitoring | No |
| Fuse Size | NH00 |
| Fuse System | DIN |
| Handle Type | 3P |
| Number of Poles | 3P |
| Power Loss | at Rated Load 33.6 W |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-20B | (690 V) 125 A |
| (500 V) 160 A | |
| (800 V) 63 A | |
| Rated Operational Current AC-21B (Ie) | (690 V) 125 A |
| (500 V) 160 A | |
| (800 V) 63 A | |
| Rated Operational Current AC-22B (Ie) | (500 V) 160 A |
| (690 V) 125 A | |
| (800 V) 125 A | |
| Rated Operational Current AC-23B (Ie) | (500 V) 160 A |
| Rated Operational Voltage | Main Circuit 800 V AC |
| Standards | IEC60947-3 |
| Terminal Type | Bolt |
| Tightening Torque | 10 N·m |
| Technical UL/CSA | |
| Tightening Torque | 10 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500046P0001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 1687854 |
