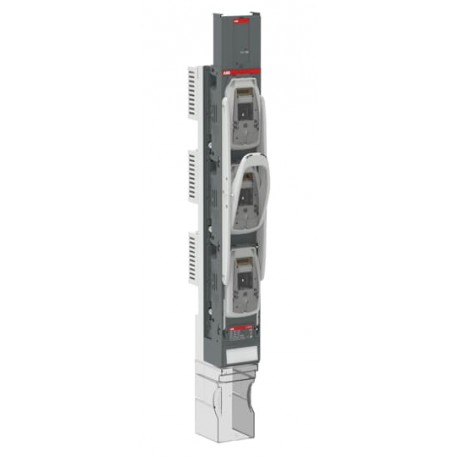

1SEP620023R3001 ABB ZHBM3-3P-M12-EFM fuse disconnect
1SEP620023R3001
1SEP620023R3001
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB ZHBM3-3P-M12-EFM fuse disconnect is a high-performance modular switching device utilized to protect and isolate industrial power circuits containing NH-style fuses. These disconnects are widely implemented in electrical switchgear to ensure operational safety during maintenance procedures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- End Of Life Disassembling Instructions: 9AKK108470A6421
- Conflict Minerals Reporting Template (CMRC): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SEC312023D0201
- Instructions and Manuals: 9AKK107991A1277
- Mechanical Drawings: 9AKK108466A1516
- Electrical Drawings: 9AKK108466A4603
- Degree of Protection: Front IP30
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Bulgaria
- Product Frame Size: High
- Product Net Width: 99 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 9AKK108470A6421 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312023D0201 |
| Instructions and Manuals | 9AKK107991A1277 |
| 9AKK108469A5727 | |
| Mechanical Drawings | 9AKK108466A1516 |
| Electrical Drawings | 9AKK108466A4603 |
| 9AKK108466A4600 | |
| Environmental | |
| Degree of Protection | Front IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Frame Size | High |
| Product Net Width | 99 mm |
| Product Net Height | 773 mm |
| Product Net Depth / Length | 218 mm |
| Product Net Weight | 5 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 99 mm |
| Package Level 1 Depth / Length | 218 mm |
| Package Level 1 Height | 773 mm |
| Package Level 1 Gross Weight | 5 kg |
| Package Level 1 EAN | 7025840091646 |
| Technical | |
| Degree of Protection | Front IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Distance Between Phases | 185 mm |
| Electronic Fuse Monitoring | Yes |
| Fuse Size | NH3 |
| Fuse System | DIN |
| Handle Type | 3P |
| Number of Poles | 3P |
| Power Loss | at Rated Load 97.2 W |
| Rated Current (In) | Main Circuit 630 A |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-20B | (690 V) 630 A |
| (500 V) 630 A | |
| (400 V) 630 A | |
| (800 V) 400 A | |
| Rated Operational Current AC-21B (Ie) | (690 V) 630 A |
| (500 V) 630 A | |
| (400 V) 630 A | |
| (800 V) 400 A | |
| Rated Operational Current AC-22B (Ie) | (400 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| (800 V) 400 A | |
| Rated Operational Current AC-23B (Ie) | (400V) 630 A |
| Rated Operational Voltage | Main Circuit 800 V AC |
| Standards | IEC60947-3 |
| Terminal Type | Bolt |
| Tightening Torque | 25 N·m |
| Technical UL/CSA | |
| Tightening Torque | 25 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500046P0001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
