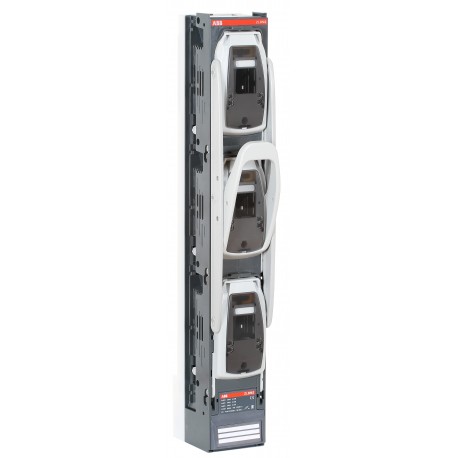

1SEP620023R3000 ABB ZHBM3-3P-M12 fuse disconnect
1SEP620023R3000
1SEP620023R3000
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A fuse disconnect like the ABB ZHBM3-3P-M12 is implemented in power distribution systems to house protective fuses and safely disconnect electrical pathways under load. These devices help protect industrial networks from overloads and make maintenance safer for technicians. Pricing, availability and lead time are confirmed per enquiry through an RFQ for part number 1SEP620023R3000.
- ABB site meets waste-to-landfill target: No non-hazardous waste is sent to a landfill
- End-of-life disassembly instructions: 9AKK108470A6421
- Environmental Product Declaration - EPD: 9AKK108469A4930
- Product recyclability rate according to EN45555: 76,90 %
- Conflict Minerals Notification Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019
- Technical data, technical information: 1SEC312023D0201
- Instructions and manuals: 9AKK107991A1277
- Mechanical drawings: 9AKK108466A1514
- Electrical Plans: 9AKK108466A4607
- Degree of protection: Front IP30
- Minimum order quantity: 1 piece
- Tariff code: 85389099
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB site meets waste-to-landfill target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste to Landfill Validation Available | |
| End-of-life disassembly instructions | 9AKK108470A6421 |
| Environmental Product Declaration - EPD | 9AKK108469A4930 |
| Product recyclability rate according to EN45555 | 76,90 % |
| Material Compliance | |
| Conflict Minerals Notification Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019 |
| Popular Downloads | |
| Technical data, technical information | 1SEC312023D0201 |
| Instructions and manuals | 9AKK107991A1277 |
| Mechanical drawings | 9AKK108466A1514 |
| Electrical Plans | 9AKK108466A4607 |
| 9AKK108466A4606 | |
| Environmental Product Declaration - EPD | 9AKK108469A4930 |
| Environment | |
| Degree of protection | Front IP30 |
| classification | |
| Minimum order quantity | 1 piece |
| Tariff code | 85389099 |
| Country of origin | Bulgaria |
| Dimensions | |
| Product Frame Size | High |
| Product Width | 99 mm |
| Product height | 662 mm |
| Product length | 218 mm |
| Product Weight | 5 kg |
| Packaging Information | |
| Packaging Level 1 Units | 1 piece |
| Packaging Level 1 Width | 99 mm |
| Level 1 Long Packaging | 218 mm |
| Packaging Level 1 High | 662 mm |
| Packaging Level 1 Weight | 5.2 kg |
| EAN Level 1 Packaging | 7025840088417 |
| Technique | |
| Degree of protection | Front IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Distance between phases | 185 mm |
| Electronic Fuse Control | No |
| Fuse Size | NH3 |
| Fuse System | DIN |
| Handle Type | 3P |
| Number of poles | 3P |
| Power loss | at Rated Load 97.2 W |
| Rated current (In) | Main Circuit 630 A |
| Nominal impulse-supported voltage (Uimp) | Main Circuit 8 kV |
| Rated insulation voltage (Ui) | 1000 V |
| Rated Operating Current AC-20B | (690 V) 630 A |
| (500 V) 630 A | |
| (400 V) 630 A | |
| (800 V) 400 A | |
| Rated Operating Current AC-21B (Iand) | (690 V) 630 A |
| (500 V) 630 A | |
| (400 V) 630 A | |
| (800 V) 400 A | |
| Rated Operating Current AC-22B (Iand) | (400 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| (800 V) 400 A | |
| (1000 V) 630 A | |
| Rated Operating Current AC-23B (Iand) | (400V) 630 A |
| Nominal operating voltage | Main Circuit 1000 V AC |
| Standards | IEC60947-3 |
| Terminal Type | Bolt |
| Tightening torque | 25 N·m |
| UL/CSA Technique | |
| Tightening torque | 25 N·m |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE | 1SEP500046P0001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| E-class | V11.1 : 27371401 |
| WEEE Category | 4. Large equipment (any external dimension more than 50cm) |
