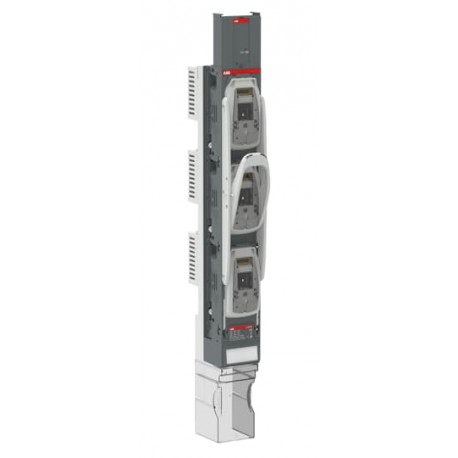

1SEP620022R3001 ABB ZHBM2-3P-M12-EFM fuse disconnect
1SEP620022R3001
1SEP620022R3001
ABB
1 Pcs.
ZHBM2-3P-M12-EFM fuse disconnect
ZHBM2-3P-M12-EFM Fuse switch disconnector
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 9AKK108470A6421 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312023D0201 |
| Instructions and Manuals | 9AKK107991A1277 |
| Electrical Drawings | 9AKK108466A4603 |
| 9AKK108466A4600 | |
| Environmental | |
| Degree of Protection | Front IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Frame Size | High |
| Product Net Width | 99 mm |
| Product Net Height | 773 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 4.41 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 99 mm |
| Package Level 1 Depth / Length | 218 mm |
| Package Level 1 Height | 773 mm |
| Package Level 1 Gross Weight | 4.41 kg |
| Package Level 1 EAN | 7025840091523 |
| Technical | |
| Degree of Protection | Front IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Distance Between Phases | 185 mm |
| Electronic Fuse Monitoring | Yes |
| Fuse Size | NH2 |
| Fuse System | DIN |
| Handle Type | 3P |
| Number of Poles | 3P |
| Power Loss | at Rated Load 55.5 W |
| Rated Current (In) | Main Circuit 400 A |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-20B | (690 V) 400 A |
| (500 V) 400 A | |
| (400 V) 400 A | |
| (800 V) 400 A | |
| Rated Operational Current AC-21B (Ie) | (690 V) 400 A |
| (500 V) 400 A | |
| (400 V) 400 A | |
| (800 V) 400 A | |
| Rated Operational Current AC-22B (Ie) | (400 V) 400 A |
| (500 V) 400 A | |
| (800 V) 400 A | |
| Rated Operational Current AC-23B (Ie) | (400V) 400 A |
| Rated Operational Voltage | Main Circuit 800 V AC |
| Standards | IEC60947-3 |
| Terminal Type | Bolt |
| Tightening Torque | 25 N·m |
| Technical UL/CSA | |
| Tightening Torque | 25 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500046P0001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | No |
| Max. rated operation voltage Ue AC (EF007355) | 800 V |
| Rated permanent current Iu (EF001389) | 400 A |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Suitable for fuses (EF006692) | NH2 |
| Number of poles (EF001391) | 3 |
| With error protection (EF007384) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Below |
| Equipped with connectors (EF011696) | No |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Other |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP30 |
