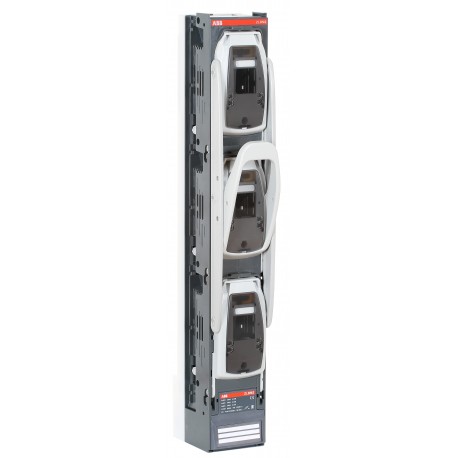

1SEP620021R3000 ABB ZHBM1-3P-M12 fuse disconnect
1SEP620021R3000
1SEP620021R3000
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SEP620021R3000 ZHBM1-3P-M12 fuse disconnect safely routes and protects electrical distribution circuits in modular industrial enclosures. Such apparatuses accept standardized fuse links to isolate electrical branches and prevent equipment damage from overcurrent conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- End Of Life Disassembling Instructions: 9AKK108470A6421
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SEC312023D0201
- Instructions and Manuals: 9AKK107991A1277
- Mechanical Drawings: 9AKK108466A1306
- Electrical Drawings: 9AKK108466A4607
- Degree of Protection: Front IP30
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Bulgaria
- Product Frame Size: High
- Product Net Width: 99 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 9AKK108470A6421 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312023D0201 |
| Instructions and Manuals | 9AKK107991A1277 |
| Mechanical Drawings | 9AKK108466A1306 |
| Electrical Drawings | 9AKK108466A4607 |
| 9AKK108466A4606 | |
| Environmental | |
| Degree of Protection | Front IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Frame Size | High |
| Product Net Width | 99 mm |
| Product Net Height | 662 mm |
| Product Net Depth / Length | 218 mm |
| Product Net Weight | 3.69 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 99 mm |
| Package Level 1 Depth / Length | 218 mm |
| Package Level 1 Height | 662 mm |
| Package Level 1 Gross Weight | 3.8 kg |
| Package Level 1 EAN | 7025840088257 |
| Technical | |
| Degree of Protection | Front IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Distance Between Phases | 185 mm |
| Electronic Fuse Monitoring | No |
| Fuse Size | NH1 |
| Fuse System | DIN |
| Handle Type | 3P |
| Number of Poles | 3P |
| Power Loss | at Rated Load 37.8 W |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-20B | (690 V) 250 A |
| (500 V) 250 A | |
| (400 V) 250 A | |
| (800 V) 200 A | |
| Rated Operational Current AC-21B (Ie) | (690 V) 250 A |
| (500 V) 250 A | |
| (400 V) 250 A | |
| (800 V) 200 A | |
| Rated Operational Current AC-22B (Ie) | (1000 V) 250 A |
| (1000 V) 400V;250 A | |
| (1000 V) 500V;250 A | |
| (1000 V) 800V;250 A | |
| Rated Operational Current AC-23B (Ie) | (400V) 250 A |
| Rated Operational Voltage | Main Circuit 1000 V AC |
| Standards | IEC60947-3 |
| Terminal Type | Bolt |
| Tightening Torque | 25 N·m |
| Technical UL/CSA | |
| Tightening Torque | 25 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500046P0001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
