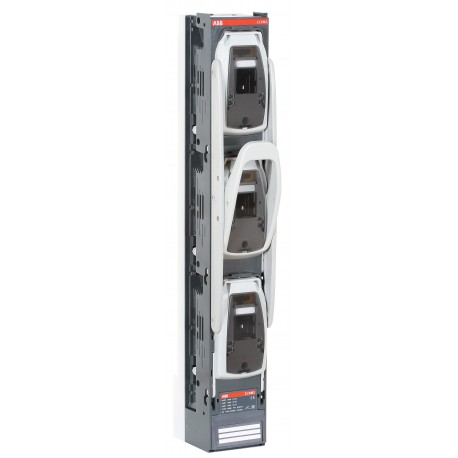

ZLBM3-3P-M12 fuse disconnect ZLBM3-3P-M12 Fuse switch disconnector

Connectors > Fuse switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb ZLBM3-3P-M12 fuse disconnect serves as a vertical fuse switch disconnector designed for optimized integration within modular electrical distribution configurations. Power networks use these units for safe, space-saving circuit protection and load switching.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
  • End Of Life Disassembling Instructions: 9AKK108470A6421
  • Environmental Product Declaration - EPD: 9AKK108469A4923
  • Recyclability Rate of the Product acc. to EN45555: 76,90 %
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SEC312023D0201
  • Instructions and Manuals: 9AKK107991A1277
  • Mechanical Drawings: 9AKK108470A0088
  • Electrical Drawings: 9AKK108466A4607
  • Environmental Product Declaration - EPD: 9AKK108469A4923
  • Degree of Protection: Front IP30
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108470A6421
Environmental Product Declaration - EPD9AKK108469A4923
Recyclability Rate of the Product acc. to EN4555576,90 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SEC312023D0201
Instructions and Manuals9AKK107991A1277
Mechanical Drawings9AKK108470A0088
9AKK108470A0087
9AKK108466A1567
Electrical Drawings9AKK108466A4607
9AKK108466A4606
Environmental Product Declaration - EPD9AKK108469A4923
Environmental
Degree of ProtectionFront IP30
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginBulgaria
Dimensions
Product Frame SizeLow
Product Net Width99 mm
Product Net Height662 mm
Product Net Depth / Length185 mm
Product Net Weight4.73 kg
Container Information
Package Level 1 Unitsshrink-wrap 1 piece
Package Level 1 Width99 mm
Package Level 1 Depth / Length185 mm
Package Level 1 Height662 mm
Package Level 1 Gross Weight4.9 kg
Package Level 1 EAN7025840088394
Technical
Degree of ProtectionFront IP30
Device Type Manager (DTM)Fuseswitchdisconnector
Distance Between Phases185 mm
Electronic Fuse MonitoringNo
Fuse SizeNH3
Fuse SystemDIN
Handle Type3P
Number of Poles3P
Power Lossat Rated Load 97.2 W
Rated Current (In)Main Circuit 630 A
Rated Impulse Withstand Voltage (Uimp)Main Circuit 8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-20B(690 V) 630 A
(500 V) 630 A
(400 V) 630 A
(800 V) 400 A
Rated Operational Current AC-21B (Ie)(690 V) 630 A
(500 V) 630 A
(400 V) 630 A
(800 V) 400 A
Rated Operational Current AC-22B (Ie)(400 V) 630 A
(500 V) 630 A
(690 V) 630 A
(800 V) 400 A
(1000 V) 630 A
Rated Operational Current AC-23B (Ie)(400V) 630 A
Rated Operational VoltageMain Circuit 1000 V AC
StandardsIEC60947-3
Terminal TypeBolt
Tightening Torque25 N·m
Technical UL/CSA
Tightening Torque25 N·m
Certificates and Declarations
Declaration of Conformity - CE1SEP500046P0001
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3660409
E-Number (Norway)1687864

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
