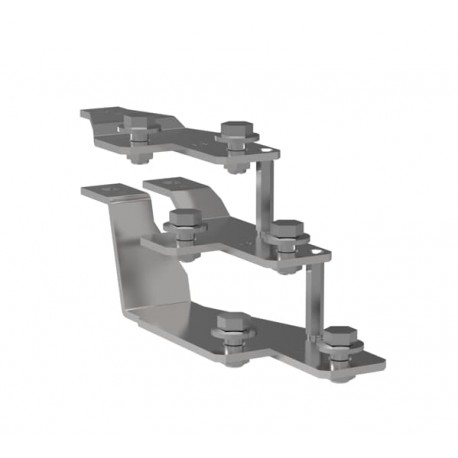

ABB 1SEP619277R0001 1SEP619277R0001 ABB ZLBM123 Terminal kit 2 ZLBM/ZHBM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SEP619277R0001 ABB ZLBM123 Terminal kit 2 ZLBM/ZHBM

1SEP619277R0001

1SEP619277R0001

ABB

1 Pcs.

ZLBM123 Terminal kit 2 ZLBM/ZHBM CL-ZLBM/ZHBM123-2X300 Cable lug

Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB ZLBM123 Terminal kit 2 ZLBM/ZHBM (part number 1SEP619277R0001) serves as a modular hardware assembly designed to adapt and expand cable connection points on fuse switch disconnectors. Such terminal kits ensure safe, reliable electrical termination for incoming and outgoing distribution lines inside industrial switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SEC312023D0201
  • Instructions and Manuals: 9AKK108467A1484
  • Mechanical Drawings: 9AKK107991A0733
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389000
  • Country or Territory of Origin: Bulgaria
  • Product Net Width: 84 mm
  • Product Net Height: 122 mm
  • Product Net Depth / Length: 305 mm
  • Product Net Weight: 1 kg
  • Package Level 1 Units: bag 1 piece
  • Package Level 1 Width: 100 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SEC312023D0201
Instructions and Manuals9AKK108467A1484
Mechanical Drawings9AKK107991A0733
9AKK107991A0734
9AKK107991A0735
9AKK107991A0736
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389000
Country or Territory of OriginBulgaria
Dimensions
Product Net Width84 mm
Product Net Height122 mm
Product Net Depth / Length305 mm
Product Net Weight1 kg
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width100 mm
Package Level 1 Height150 mm
Package Level 1 Gross Weight1.1 kg
Package Level 1 EAN7025840088486
Technical
Accessory TypeConnection clamp
Tightening Torque25 N·m
Technical UL/CSA
Tightening Torque25 N·m
Certificates and Declarations
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.1 : 27371392
WEEE CategoryProduct Not in WEEE Scope
