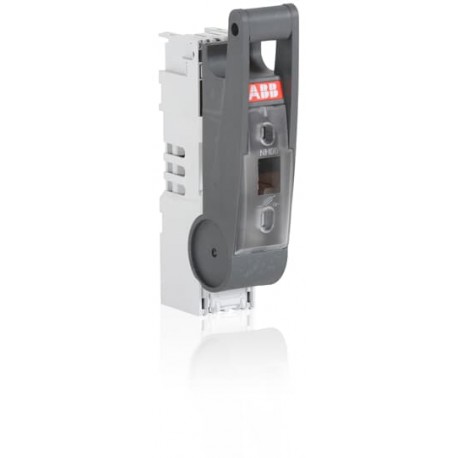

1SEP600113R0001 ABB XLP00-1P
1SEP600113R0001
1SEP600113R0001
ABB
1 Pcs.
XLP00-1P
XLP00-1P Fuse Switch Disconnector
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Notification Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019 |
| Popular Downloads | |
| Technical data, technical information | 1SEC312012D0201 |
| Instructions and manuals | No Instructions and Manuals needed |
| Environment | |
| Degree of protection | IP30 |
| classification | |
| Minimum order quantity | 1 piece |
| Tariff code | 85389099 |
| Country of origin | China |
| Dimensions | |
| Product Width | 40 mm |
| Product height | 88 mm |
| Product length | 185 mm |
| Product Weight | 0.24 kg |
| Packaging Information | |
| Packaging Level 1 Units | shrink wrap 1 piece |
| Packaging Level 1 Width | 40 mm |
| Level 1 Long Packaging | 185 mm |
| Packaging Level 1 High | 88 mm |
| Packaging Level 1 Weight | 0.24 kg |
| EAN Level 1 Packaging | 7025840086482 |
| Package Level 2 EAN | 7025840086482 |
| Technique | |
| Degree of protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Electronic Fuse Control | No |
| Fuse Size | NH00 |
| NH000 | |
| Fuse System | DIN |
| Handle Type | Front cover 1P |
| Type of mounting | Baseplate |
| Number of poles | 1P |
| Power loss | at load rating 3.5 W |
| Conditional short-circuit current rating (INc) | (690 V) 50 k/ampere rms |
| Rated current (In) | 160 A |
| Nominal Frequency (f) | Main Circuit 50/60 Hz |
| Nominal impulse-supported voltage (Uimp) | Main Circuit 8 kV |
| Rated Operating Current AC-21B (Iand) | (690 V) 125 A |
| Rated Operating Current AC-22B (Iand) | (500 V) 160 A |
| Rated Operating Current DC-22B | (220 V) 160 A |
| Nominal operating voltage | 220 V DC |
| 500 V AC | |
| 690 V AC | |
| Rated voltage (Ur) | 220 V DC |
| 500 V AC | |
| 690 V AC | |
| Special Functions | Not Included |
| Standards | IEC60947-3 |
| GB/T14048.3 | |
| Terminal Type | Tongue Terminals |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE | 1SEP500050P0001 |
| External Classifications and Standards | |
| Object Classification Code | s |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| E-class | V11.1 : 27371401 |
| WEEE Category | 5. Small equipment (no external dimension more than 50cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 125 A |
| Conditioned rated short-circuit current Iq (EF001444) | 50 kA |
| Suitable for fuses (EF006692) | NH000, NH00 |
| Number of poles (EF001391) | 1 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Other |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP30 |
