View larger
Images are for illustrative purposes only. Please refer to data sheet for details

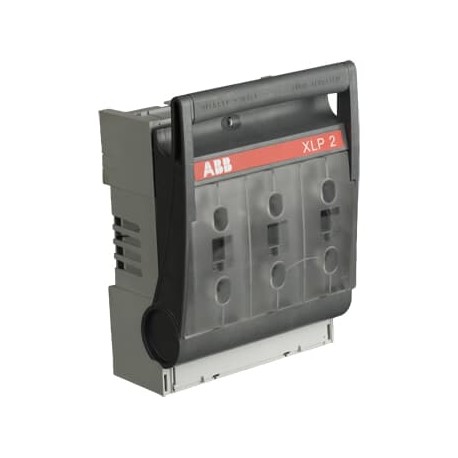

1SEP101892R0001 ABB XLP DESC. 2 3P 400A WITHOUT TERM.
1SEP101892R0001
101892
ABB
1 Pcs.
XLP DESC. 2 3P 400A WITHOUT TERM.
XLP2 Fuse Switch Disconnector
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 9AKK108469A3432 |
| Environmental Product Declaration - EPD | 9AKK108468A2201 |
| 9AKK108468A2281 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 94.1 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312012D0201 |
| Instructions and Manuals | No Instructions and Manuals needed |
| Environmental Product Declaration - EPD | 9AKK108468A2201 |
| 9AKK108468A2281 | |
| Environmental | |
| Degree of Protection | IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Bulgaria |
| China | |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 290 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.3 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 210 mm |
| Package Level 1 Depth / Length | 130 mm |
| Package Level 1 Height | 290 mm |
| Package Level 1 Gross Weight | 2.5 kg |
| Package Level 1 EAN | 7025840016861 |
| Package Level 2 EAN | 7025840016861 |
| Technical | |
| Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Electronic Fuse Monitoring | No |
| Fuse Size | NH2 |
| Fuse System | DIN |
| Handle Type | Front cover 3P |
| Mounting Type | Baseplate |
| Number of Poles | 3P |
| Power Loss | at Rated Load 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms |
| Rated Current (In) | 400 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 315 A |
| Rated Operational Current AC-22B (Ie) | (500 V) 400 A |
| (800 V) 400 A | |
| Rated Operational Voltage | 500 V AC |
| 690 V AC | |
| Rated Voltage (Ur) | 500 V AC |
| 690 V AC | |
| Special Functions | Not Included |
| Standards | IEC60947-3 |
| GB/T14048.3 | |
| Terminal Type | Lug terminals |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500050P0001 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171956 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 315 A |
| Conditioned rated short-circuit current Iq (EF001444) | 50 kA |
| Suitable for fuses (EF006692) | NH2 |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Other |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP30 |
