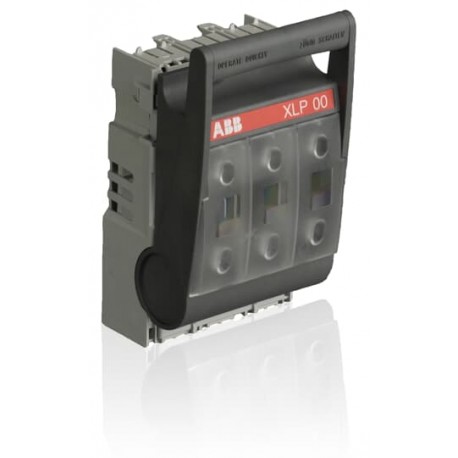

1SEP101890R0001 ABB XLP DESC. 00 3P 160A WITHOUT TERM.
1SEP101890R0001
101890
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb XLP DESC. 00 3P 160A WITHOUT TERM. acts as an in-line fuse switch disconnector designed for secure power distribution and overcurrent safeguarding in low-voltage distribution boards. Panel builders utilize such apparatus to manage branch circuits and ensure safe physical isolation during maintenance cycles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- End Of Life Disassembling Instructions: 9AKK108469A3432
- Environmental Product Declaration - EPD: 9AKK108468A2201
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 94.1 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SEC312012D0201
- Instructions and Manuals: No Instructions and Manuals needed
- Environmental Product Declaration - EPD: 9AKK108468A2201
- Degree of Protection: IP30
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Bulgaria
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 9AKK108469A3432 |
| Environmental Product Declaration - EPD | 9AKK108468A2201 |
| 9AKK108468A2281 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 94.1 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312012D0201 |
| Instructions and Manuals | No Instructions and Manuals needed |
| Environmental Product Declaration - EPD | 9AKK108468A2201 |
| 9AKK108468A2281 | |
| Environmental | |
| Degree of Protection | IP30 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Bulgaria |
| China | |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 187 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 0.49 kg |
| Container Information | |
| Package Level 1 Units | shrink-wrap 1 piece |
| Package Level 1 Width | 105 mm |
| Package Level 1 Depth / Length | 90 mm |
| Package Level 1 Height | 187 mm |
| Package Level 1 Gross Weight | 0.55 kg |
| Package Level 1 EAN | 7025840013396 |
| Package Level 2 EAN | 7025840013396 |
| Technical | |
| Degree of Protection | IP30 |
| Device Type Manager (DTM) | Fuseswitchdisconnector |
| Electronic Fuse Monitoring | No |
| Fuse Size | NH00 |
| NH000 | |
| Fuse System | DIN |
| Handle Type | Front cover 3P |
| Mounting Type | Baseplate |
| Number of Poles | 3P |
| Power Loss | at Rated Load 3.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms |
| Rated Current (In) | 160 A |
| Rated Frequency (f) | Main Circuit 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Operational Current AC-21B (Ie) | (690 V) 125 A |
| Rated Operational Current AC-22B (Ie) | (500 V) 160 A |
| (800 V) 63 A | |
| (1000 V) 125 A | |
| Rated Operational Current AC-23B (Ie) | (400V) 125 A |
| Rated Operational Voltage | 400 V AC |
| 500 V AC | |
| 690 V AC | |
| 800 V AC | |
| 1000 V AC | |
| Rated Voltage (Ur) | 400 V AC |
| 500 V AC | |
| 690 V AC | |
| 800 V AC | |
| 1000 V AC | |
| Special Functions | Not Included |
| Standards | IEC60947-3 |
| GB/T14048.3 | |
| Terminal Type | Lug terminals |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500050P0001 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39121600 |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601061 |
