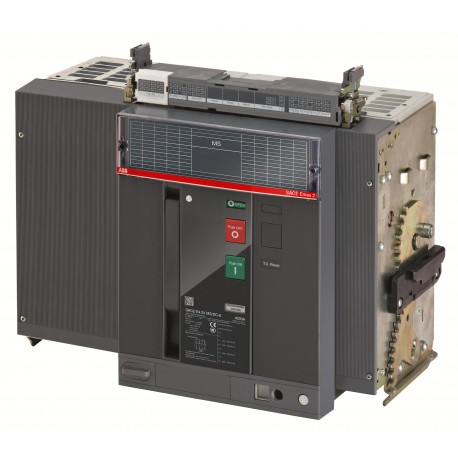

1SDA134369R1 ABB E4.2S MS/DC-E 2500A 1500VDC 4p W MP
1SDA134369R1
134369
ABB
1 Pcs.
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB E4.2S MS/DC-E 2500A 1500VDC 4p W MP is a heavy-duty air circuit breaker designed for high-capacity direct current power distribution systems. Switchgear assemblies rely on these robust protective devices to safely interrupt high fault currents and isolate sections of industrial electrical networks during maintenance or overload events.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- EAN: 8056221334242
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 510 mm
- Product Net Height: 371 mm
- Product Net Depth / Length: 270 mm
- Product Net Weight: 85 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 515 mm
- Package Level 1 Height: 600 mm
- Package Level 1 Depth / Length: 785 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Ordering | |
| EAN | 8056221334242 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 510 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 85 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 100 kg |
| Package Level 1 EAN | 8056221334242 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | W |
| Technical | |
| Current Type | DC |
| Number of Poles | 4P |
| Power Loss | 560 W |
| Rated Current (In) | 2500 A |
| Rated Impulse Withstand Voltage (Uimp) | 12000 V |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current (Ie) | 1500 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | 65 kA |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Rated Voltage (Ur) | 1500 V |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4.2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200045D0201 |
| Declaration of Conformity - CE | 9AKK107992A0071 |
| Instructions and Manuals | 1SDH002083A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
