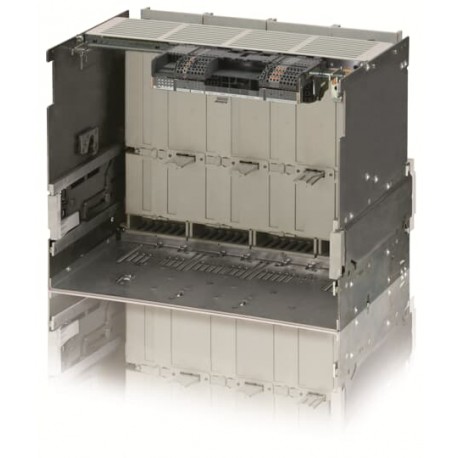

ABB 1SDA122995R1 1SDA122995R1 ABB E4.2 MS/DC-E DC-20 6000A 1500V 4p FP LHR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA122995R1 ABB E4.2 MS/DC-E DC-20 6000A 1500V 4p FP LHR

1SDA122995R1

1SDA122995R1

ABB

1 Pcs.

E4.2 MS/DC-E DC-20 6000A 1500V 4p FP LHR

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

1SDA122995R1 ABB E4.2 MS/DC-E DC-20 6000A 1500V 4p FP LHR functions as a specialized direct current switching apparatus deployed in high-power DC distribution networks and renewable energy systems. Such components provide essential isolation capabilities for heavy industrial photovoltaic arrays and large-scale battery storage facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 1SDL000197R0003
  • EAN: 8056221176644
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 510 mm
  • Product Net Height: 371 mm
  • Product Net Depth / Length: 270 mm
  • Product Net Weight: 81 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information1SDL000197R0003
Ordering
EAN8056221176644
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width510 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight81 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight95 kg
Package Level 1 EAN8056221176644
Additional Information
Product Main TypeSACE Emax 2
Product NameFixed Part
Product TypeFixed Part
VersionW FP
Technical
Current TypeDC
Number of Poles4P
Power Loss0 W
Rated Current (In)6000 A
Rated Impulse Withstand Voltage (Uimp)12000 V
Rated Insulation Voltage (Ui)1500 V
Rated Operational Voltage1500 V DC
Rated Uninterrupted Current (Iu)6000 A
Rated Voltage (Ur)1500 V
RemarksDC-20
StandardsIEC
Sub-typeE4.2
Terminal Connection TypeRear flat Vertical
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC200045D0201
Declaration of Conformity - CE9AKK107992A0071
Instructions and Manuals1SDH002083A1002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
