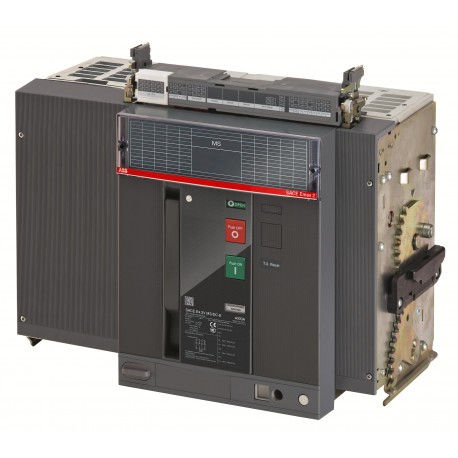

1SDA122994R1 ABB E4.2V MS/DC-E DC-20 6000A 1500V 4p W MP
1SDA122994R1
1SDA122994R1
ABB
1 Pcs.
E4.2V MS/DC-E DC-20 6000A 1500V 4p W MP
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | eea51791-73f8-4f9d-9931-14062e53e2f8 Italy |
| Simplified SCIP | 32384173-4445-463f-9baa-6a0d9905e500 Spain |
| 8b1654b7-edc7-4caf-9b01-8cff919f02fa Belgium | |
| 5832b386-1f87-4b5d-9cc2-eb8538858e95 France | |
| 27364298-c78d-40e3-b36d-97f4d4e688c1 Hungary | |
| bc42ea1f-a7ba-4902-af20-ce9b05190c55 Croatia | |
| 45e1d6d2-ecd3-4780-9816-e37162f8a505 Germany | |
| 307f7f10-aa82-4e9c-a5cc-88ef8f4e2039 Germany | |
| c4dfec5b-f76d-4568-b5b7-c0efdb01d4f1 Denmark | |
| 52f5ba02-691e-4269-a880-d52b455204b1 Sweden | |
| 3b2ce672-445e-4066-b27d-7a3e28d18454 Germany | |
| 029f86cc-decc-4e90-baa3-cb879e62d1e0 Estonia | |
| 686cb603-ca96-4f79-ac4f-2685cc7ef093 Belgium | |
| ea41f890-5df1-4694-80ae-6a610110914b Poland | |
| d1652008-d424-48ab-80a8-73abe7df5cd5 France | |
| 12f2f690-e13c-4221-8c9d-bc7860825b68 Greece | |
| 9516d0fe-b6f3-4a37-b6e4-ed4500257d66 Germany | |
| d98048ad-f225-4223-923d-07cb6200901b Norway | |
| c3414c88-244c-4ead-8772-8f5f00b5d5b2 Sweden | |
| fa96040e-075b-492a-9e18-7a98e7ffe611 Netherlands | |
| 28351fcf-36f1-4c63-8e88-e88b1436c3bf Poland | |
| 6e963766-9c48-44b4-b217-529e1d2c625c Hungary | |
| 9887f0a2-f1f4-4323-937b-e63c9ab7527a Finland | |
| 55009d44-15f6-462e-85b9-2c380876f985 Germany | |
| 8bc90f3d-8c45-41ef-842b-507bccba7198 Poland | |
| d6967060-7be4-455e-a6c6-8f3d0e3b098f Bulgaria | |
| 9736670b-bbb2-4cbd-95c6-01c6ff2ff51b Portugal | |
| 106ca493-add6-4917-96f0-67c3692d9abb Czech Republic | |
| Environmental | |
| Environmental Information | 1SDL000197R0003 |
| Ordering | |
| EAN | 8056221176637 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 510 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 85 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 100 kg |
| Package Level 1 EAN | 8056221176637 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | W |
| Technical | |
| Current Type | DC |
| Number of Poles | 4P |
| Power Loss | 641 W |
| Rated Current (In) | 6000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12000 V |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Voltage | 1500 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | 100 kA |
| Rated Uninterrupted Current (Iu) | 6000 A |
| Rated Voltage (Ur) | 1500 V |
| Remarks | DC-20 |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200045D0201 |
| Declaration of Conformity - CE | 9AKK107992A0071 |
| Instructions and Manuals | 1SDH002083A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 1500 V |
| Rated operating voltage (EF001435) | 1500 V |
| Rated permanent current Iu (EF001389) | 6000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 6000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 6000 A |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
