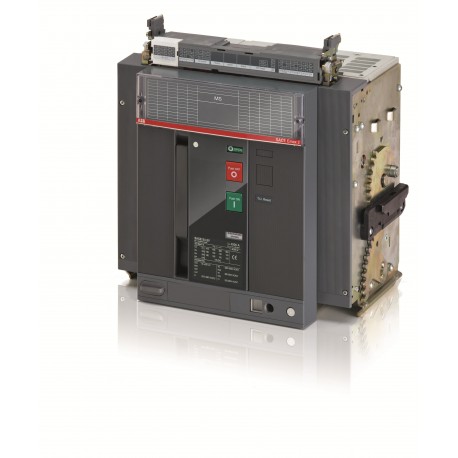

ABB 1SDA121161R1 1SDA121161R1 ABB E4.2H/E12 MS 4000 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA121161R1 ABB E4.2H/E12 MS 4000 3p WMP

1SDA121161R1

1SDA121161R1

ABB

1 Pcs.

E4.2H/E12 MS 4000 3p WMP

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA121161R1 ABB E4.2H/E12 MS 4000 3p WMP is an advanced air circuit breaker designed for high-capacity electrical distribution systems to manage heavy loads and interrupt high short-circuit currents. Such components act as primary protection devices in switchgear setups, safeguarding delicate industrial infrastructure from severe electrical faults.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • End Of Life Disassembling Instructions: 9AKK108468A2363
  • Environmental Product Declaration - EPD: 9AKK108471A0821
  • Extended Product Lifetime: Lifetime Extension Services are Offered
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 1SDL000197R0003
  • EAN: 8056221157537
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 425 mm
  • Product Net Height: 425 mm

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information1SDL000197R0003
9AKK108467A6707
Ordering
EAN8056221157537
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width425 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight60 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight95 kg
Package Level 1 EAN8056221157537
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 1200 V 1000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Loss900 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)15 kV
Rated Insulation Voltage (Ui)1500 V
Rated Operational Voltage1200 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 85 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)1200 V
RemarksE12
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE4.2
Certificates and Declarations
Data Sheet, Technical Information1SDC200074B0201
1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4889
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
