View larger
Images are for illustrative purposes only. Please refer to data sheet for details

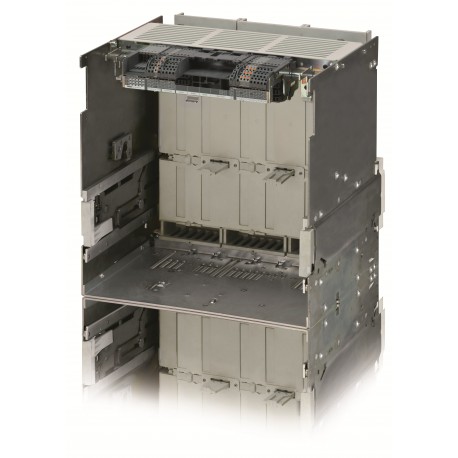

1SDA121089R1 ABB E4.2 /E12 W FP Iu 4000 3p SVR SVR
1SDA121089R1
1SDA121089R1
ABB
1 Pcs.
E4.2 /E12 W FP Iu=4000 3p SVR SVR
Automation > Chassis part power circuit breaker
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 1SDL000197R0003 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8056221156813 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 425 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 50 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 630 mm |
| Package Level 1 Height | 590 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Gross Weight | 57 kg |
| Package Level 1 EAN | 8056221156813 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | W FP |
| Technical | |
| Current Type | AC |
| Number of Poles | 3P |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | 15 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Voltage | 1000 V AC |
| 1200 V AC | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 1200 V |
| Remarks | E12 |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Vertical |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200097B0201 |
| 1SDC200074B0201 | |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 4000 A |
| Number of poles (EF001391) | 3 |
| Version as busbar adapter (EF006965) | No |
| Version as built-in device (EF006954) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
