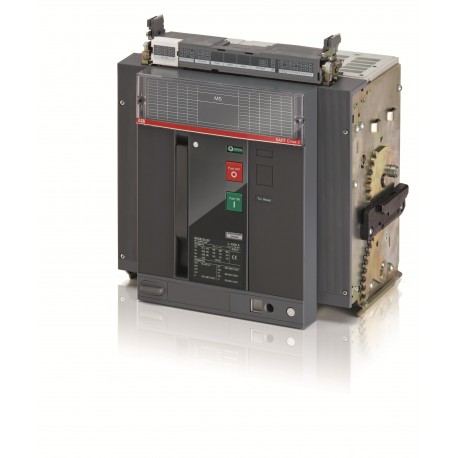

1SDA119549R1 ABB E4.2H/E9 MS 3200 3p WMP
1SDA119549R1
119549
ABB
1 Pcs.
E4.2H/E9 MS 3200 3p WMP
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5c009a1f-2d6f-4e22-a140-97efade7e1bb Italy |
| Simplified SCIP | 34c87f81-18bd-4cde-9eae-192ae20547ef France |
| df1c41fa-7648-48d5-8906-360f012a1039 Spain | |
| 4caff200-a768-41ec-8210-fd95c6acee7d Hungary | |
| 68ddac71-0c18-4fbd-8a4b-3584bc1b2f04 Belgium | |
| 9d913cda-06e6-4970-91f8-48185487a37a France | |
| a476437f-1566-4ceb-86d4-e67cb542bde4 Denmark | |
| 0310b835-2b75-4bf8-9237-6fa6d89c2a45 Germany | |
| 64f64017-9498-4f89-8571-77dc014fc679 Croatia | |
| 1c1bb5bf-dbe4-4959-b29c-865ef304e918 Germany | |
| 653d8119-31b9-42c7-a1d8-393fe4aa153b Sweden | |
| cdaf4a0f-4c76-4203-9320-4526c28b1a9e Germany | |
| d76d7025-6518-4f7b-9367-59fd9270bf20 Germany | |
| ddcbc6b1-f629-452e-a6e0-39c36949299e Sweden | |
| 024b8ca5-6757-49c5-911c-7202f01171be Finland | |
| 23af2787-863f-4c4b-bec2-5b87a4250709 Hungary | |
| 100ed50a-aa10-4ea6-a33b-c8e79d473295 Netherlands | |
| ec986c61-1c22-473f-a752-d7623c6af101 Norway | |
| e25659b0-d49b-46ea-a09e-cef798aa2ee0 Belgium | |
| b8c9293d-361e-45d3-a8eb-738187b7c1da Poland | |
| 08f3edd0-2a92-4e69-839b-486d33e21b78 Estonia | |
| fb0da175-2130-4066-8dee-cb01e5190af4 Greece | |
| 1b46fde4-b7c7-4c82-ac18-9d6f0bb015df Poland | |
| 2cd2390a-30a9-4e30-b123-34bd7cebcac7 Poland | |
| e59629e7-4677-4ceb-a134-dc49d2748b78 Bulgaria | |
| a24c60db-9fac-4d9b-8240-efea5d30beec Germany | |
| 24a29888-4cf6-40ba-8689-daef509144c3 Czech Republic | |
| 68606afa-fb97-4f14-b059-d0e89ac3f821 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221140737 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 425 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 60 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 95 kg |
| Package Level 1 EAN | 8056221140737 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 1000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 743 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | 75 kA |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 900 V |
| Remarks | E9 |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E4.2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 900 V |
| Rated operating voltage (EF001435) | 900 V |
| Rated permanent current Iu (EF001389) | 3200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 3200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 3200 A |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
