View larger
Images are for illustrative purposes only. Please refer to data sheet for details

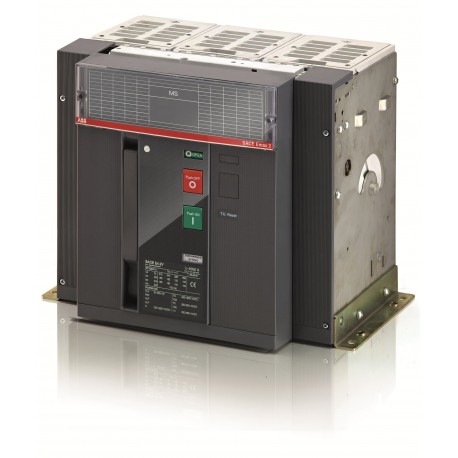

1SDA119546R1 ABB E4.2H/E9/LF MS 3200 3p FHR
1SDA119546R1
119546
ABB
1 Pcs.
E4.2H/E9/LF MS 3200 3p FHR
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 27ea5904-01ec-45a9-be63-edce6fe81a0c Italy |
| Simplified SCIP | 53ec29b3-dc22-4fc9-ac93-5029d20348ca Bulgaria |
| 0d94cdbd-1168-4273-b496-d1702cec742a Poland | |
| f75bde58-4b71-475a-a8f6-756292a38891 Czech Republic | |
| 26c8ca78-a3b7-4654-9808-0313f3031969 Germany | |
| a672f7de-f96d-47fd-b65e-57416c7c65fd Belgium | |
| c2232525-6bf7-4bda-85ee-fcbf1c87e49e Spain | |
| 25305d00-cca5-44de-8213-21466874095e Hungary | |
| ddb1f506-8fd3-41d0-bd7f-935c69553238 France | |
| 2e6f37d0-df2a-4dd8-9b82-4bece38ad060 Germany | |
| e21268ff-1b9c-4c04-98c6-186bfa8655cb Denmark | |
| ef2cce9a-1b13-4956-b32b-3afee2e82819 Sweden | |
| 37211e37-9dd0-45cf-9fb5-b69fcc2feab2 Germany | |
| fcfea69d-1860-4b7d-8f62-ae903f3cc48a Germany | |
| 4b61cbb7-ac1e-454c-a4a8-6d7947e12d97 Croatia | |
| 0be2bcb2-1c43-4a7e-80fa-ca16e7331533 Estonia | |
| 652aa7bd-6531-4a18-a908-6c4dc8b80c55 Germany | |
| 8b88331d-df0b-4591-a1c8-8c7a3234cfa8 Greece | |
| bc7182a4-a6e2-4701-a11c-66739caa7e6a France | |
| 0298eecc-371e-4ca4-b327-df155e860411 Belgium | |
| ed08f71c-13e0-48c8-8341-34b2353d812f Poland | |
| 2e14b57c-2d94-4b58-a91e-b0e8b743d057 Norway | |
| b8657518-dcd7-4404-ac5f-a6615c0ec4cb Netherlands | |
| 0a4238fb-cf21-441b-9929-18b7fe6af4d5 Sweden | |
| 88c31388-351b-4b00-909f-b90278adc40d Poland | |
| 2b9eddf1-4d83-4b46-a00f-93778672fd48 Hungary | |
| dc3fce97-4bf6-460f-bfa8-af50157f1220 Finland | |
| 5e2a172b-df54-4cbe-a2ab-6d22b62649cf Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221140706 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 95 kg |
| Package Level 1 EAN | 8056221140706 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 1000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | 75 kA |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 900 V |
| Remarks | E9 |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200097B0201 |
| 1SDC200074B0201 | |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 900 V |
| Rated operating voltage (EF001435) | 900 V |
| Rated permanent current Iu (EF001389) | 3200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 3200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 3200 A |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
