View larger
Images are for illustrative purposes only. Please refer to data sheet for details

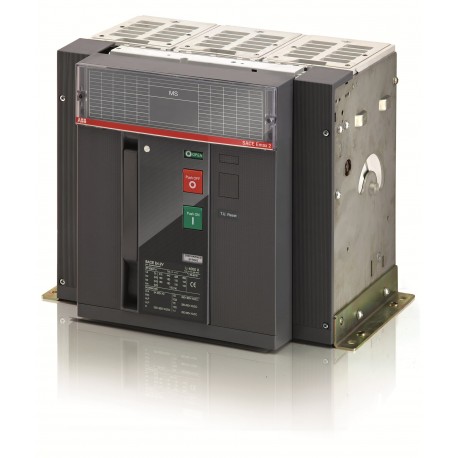

1SDA119545R1 ABB E4.2H/E9/LF MS 2500 3p FHR
1SDA119545R1
119545
ABB
1 Pcs.
E4.2H/E9/LF MS 2500 3p FHR
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 7b52b791-a659-4017-8f8a-3788ea45396a Italy |
| Simplified SCIP | 38f3c575-4144-4cff-8f59-80623a7f6579 Portugal |
| a1641878-5d31-41c2-b9b7-abd1c6830584 Poland | |
| 54dafe58-faab-461b-8f6e-73920c3ff6ab Estonia | |
| 4c973a1f-ffc1-4ae7-89af-f39d71bd3cdb Netherlands | |
| 9378f800-1840-4072-9eef-6d251dd964c2 Norway | |
| d744b7f2-96b4-4880-a3dc-70e2509eae4f Sweden | |
| 1e86f29c-0b16-4717-804d-0a472599ef16 Finland | |
| f7d174b6-2f7b-45e9-981e-c7fb16cc15cb Hungary | |
| ddc33bd2-fde6-44e7-b3d3-50d605e67daf Poland | |
| eccda404-ae5c-4a66-9009-b5a5d556bfae Poland | |
| 89c6c54c-4e60-4bde-b9a8-5b89f7c475bf Bulgaria | |
| 94d5ee22-ece5-42f3-9878-76ed40c8108b Germany | |
| 24391040-361a-4328-ab2a-98ea6c5f2f94 Czech Republic | |
| aceed700-99d0-4793-b2e9-fa36e83bc8cb Belgium | |
| 90134081-384e-477a-aaa6-770d3b931adb France | |
| 90b2236b-6c63-4914-82a5-71395a50777c Spain | |
| 765d1cbb-6494-410b-a6cc-c2b1ed5b2cff Hungary | |
| 43bab6a4-42b5-4266-9d69-adc8edb4fb21 Germany | |
| 1242ef55-fb21-4c2a-b816-2ab6aadcfac6 Germany | |
| d6342490-912d-4842-9cac-0a609ee88535 Germany | |
| eb577ec8-0066-4e61-b8b6-1173e9c8bec1 France | |
| f838d820-77f8-44e2-8a2a-5cf877e6497b Denmark | |
| 2db46d8d-3083-4435-87fb-ae5813f30448 Germany | |
| 9957ec00-16e3-4177-b649-f033fca2cf30 Sweden | |
| cd90722a-bed1-4001-8c61-cb02b007c0b6 Croatia | |
| 5c2a0ee0-dfac-4c54-98a7-7eac12efde20 Greece | |
| b76b89cf-5fa5-4d34-bf3c-f463d8ef46d2 Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221140591 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 95 kg |
| Package Level 1 EAN | 8056221140591 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 1000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 2500 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | 75 kA |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Rated Voltage (Ur) | 900 V |
| Remarks | E9 |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200097B0201 |
| 1SDC200074B0201 | |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 900 V |
| Rated operating voltage (EF001435) | 900 V |
| Rated permanent current Iu (EF001389) | 2500 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 2500 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 2500 A |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
