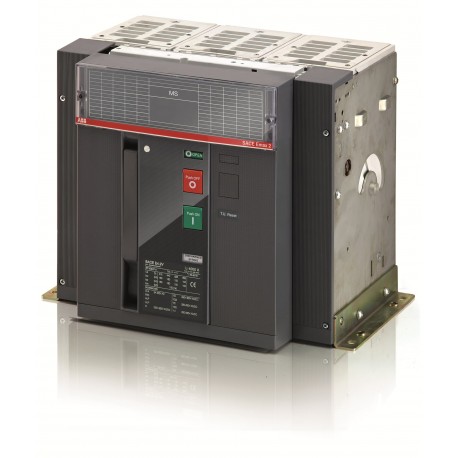

ABB 1SDA119543R1 1SDA119543R1 ABB E4.2H/E9 MS 3200 3p FHR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA119543R1 ABB E4.2H/E9 MS 3200 3p FHR

1SDA119543R1

119543

ABB

1 Pcs.

E4.2H/E9 MS 3200 3p FHR

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    E4.2H/E9 MS 3200 3p FHR
  • Product ID:
    1SDA119543R1
  • EAN:
    8056221140577
  • Catalog Description:
    E4.2H/E9 MS 3200 3p FHR
  • Long Description:
    C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E4.2H/E9 MS 3200A FIXED THREE-POLE WITH REAR HORIZONTAL TERMINALS

Ordering

  • EAN:
    8056221140577
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362090

Dimensions

  • Product Net Width:
    384mm
  • Product Net Height:
    371mm
  • Product Net Depth / Length:
    270mm
  • Product Net Weight:
    56kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    515 mm
  • Package Level 1 Height:
    600 mm
  • Package Level 1 Depth / Length:
    785 mm
  • Package Level 1 Gross Weight:
    95 kg
  • Package Level 1 EAN:
    8056221140577

Environmental

Additional Information

  • Current Type:
    AC
  • Electrical Durability:
    Ue = 900 V 1000 cycle
    10 cycles per hour
  • Mechanical Durability:
    20000 cycle
    60 cycles per hour
  • Number of Poles:
    3
  • Power Loss:
    465 W
  • Product Main Type:
    SACE Emax 2
  • Product Name:
    Switch Disconnector
  • Product Type:
    Switch Disconnector
  • Rated Current (In):
    3200 A
  • Rated Voltage (Ur):
    900 V
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    900 V AC
  • Rated Short-time Withstand Current Low Voltage (Icw):
    75 kA
  • Rated Uninterrupted Current (Iu):
    3200 A
  • Remarks:
    E9
  • Short-Circuit Performance Level:
    H
  • Standards:
    IEC
  • Sub-type:
    E4.2
  • Terminal Connection Type:
    Rear flat Horizontal
  • Version:
    F

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC000216 - Switch disconnector
  • ETIM 7:
    EC000216 - Switch disconnector
  • Object Classification Code:
    Q
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SDA119543R1 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 0
Max. rated operation voltage Ue AC (EF007355) 900 V
Rated operating voltage (EF001435) 900 V
Rated permanent current Iu (EF001389) 3200 A
Rated permanent current at AC-23, 400 V (EF011777) 3200 A
Rated permanent current at AC-21, 400 V (EF009165) 3200 A
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) Yes
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) Yes
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Other
Type of control element (EF006976) Push button
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP30
Degree of protection (NEMA) (EF011959) Other
