View larger
Images are for illustrative purposes only. Please refer to data sheet for details

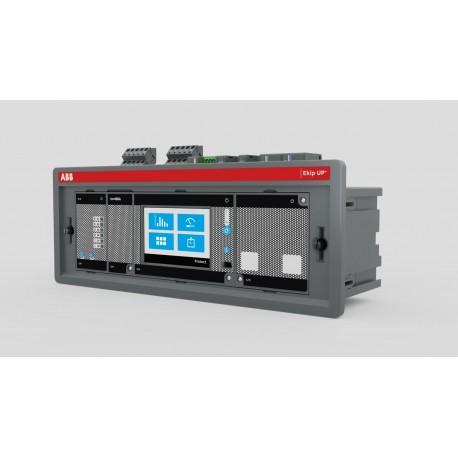

1SDA117057R1 ABB Ekip UP+ Protect
1SDA117057R1
117057
ABB
1 Pcs.
Ekip UP+ Protect
Automation > Shunt release (for power circuit breaker)
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221091695 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 2.77 kg |
| Gross Weight | 2.5 kg |
| Container Information | |
| Package Level 1 Units | 1 box |
| Package Level 1 EAN | 8056221091695 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Energy Metering, Standard Protection |
| Product Main Type | Ekip UP+ |
| Product Name | Digital Unit |
| Product Type | Digital Unit |
| Suitable For | Ekip UP+ |
| Suitable for Product Class | Ekip UP |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC |
| UL | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC001120D0201 |
| Declaration of Conformity - CE | 9AKK108468A0987 |
| Instructions and Manuals | 1SDH002129A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 10 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electric connection (EF003961) | Other |
