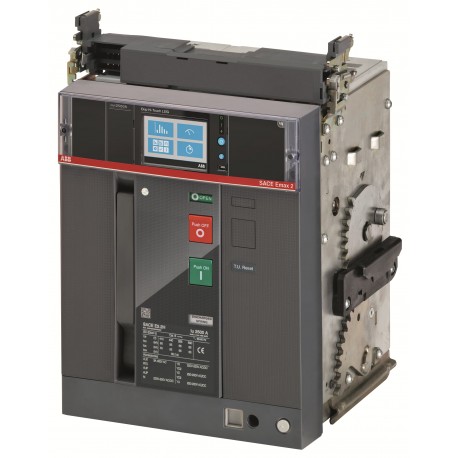

1SDA115929R1 ABB E2.2H/E10 2500 Ekip Touch LSIG 3p WMP
1SDA115929R1
115929
ABB
1 Pcs.
E2.2H/E10 2500 Ekip Touch LSIG 3p WMP
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | fa332c89-47ac-481c-8de2-fde176abb281 Italy |
| Simplified SCIP | 16afea1e-273f-4f33-8d92-977631803272 Belgium |
| cef0ce4a-6bf5-4dba-8c33-cfcc9bdbe9ae Germany | |
| 5c267f66-446f-430a-994c-4a21501f1699 Norway | |
| 28a8e506-96e3-427b-8464-3ccc0016c82f France | |
| e9bd5589-5e52-4d21-a9d7-3c0ee08395a6 Portugal | |
| 7e8127b4-ef29-48be-819b-958fb5171d6b Germany | |
| e69d218b-d842-43f1-b01d-8f378522606b Finland | |
| 177b03b3-2a5c-45b6-bec4-25a66811ef54 Netherlands | |
| 380775e3-0644-4e04-be39-f7dc8fefd60c Sweden | |
| 4484aeb8-e1e8-44a2-a2d9-11c9183e1c96 Croatia | |
| 52e01195-b161-4604-acea-7c90044f27c9 Germany | |
| bf661428-c398-45b3-958f-41f355079bf6 Germany | |
| 810243fc-af2d-484d-a44f-1e23eb80d0cb Hungary | |
| d128fdc4-ff53-47a7-800d-2ab545094b24 Bulgaria | |
| 177b03b3-2a5c-45b6-bec4-25a66811ef54 Netherlands | |
| da3982ba-fb77-4160-a7a4-57c956c6b593 Belgium | |
| 4076dcb8-03d7-49f4-b219-7650b5cdda62 Poland | |
| 875d358e-96e1-43d3-a727-783b31ddd710 Greece | |
| e9bd5589-5e52-4d21-a9d7-3c0ee08395a6 Portugal | |
| 79f5275d-808a-4e45-93cf-75100014b89c Poland | |
| 5e2bfcc4-b89b-4fb6-923f-632702fd7f48 Hungary | |
| 103e33e8-69c0-46be-84e3-f87afef75394 France | |
| da3982ba-fb77-4160-a7a4-57c956c6b593 Belgium | |
| 2d718ae8-daa2-4dcd-a160-24b68e0c013c Spain | |
| bf661428-c398-45b3-958f-41f355079bf6 Germany | |
| 380775e3-0644-4e04-be39-f7dc8fefd60c Sweden | |
| 52e01195-b161-4604-acea-7c90044f27c9 Germany | |
| 28a8e506-96e3-427b-8464-3ccc0016c82f France | |
| c72194e6-19c3-4dc3-9fd6-5983cf5974f4 Poland | |
| 3eb9708e-80a4-42a5-b710-953f8bd32eab Sweden | |
| 79f5275d-808a-4e45-93cf-75100014b89c Poland | |
| 103e33e8-69c0-46be-84e3-f87afef75394 France | |
| d1b04970-2795-45ad-b15a-c1db6a0fb3f3 Estonia | |
| 2d718ae8-daa2-4dcd-a160-24b68e0c013c Spain | |
| d1b04970-2795-45ad-b15a-c1db6a0fb3f3 Estonia | |
| dea2595c-05f8-4055-8b39-10c180c3c600 Czech Republic | |
| 810243fc-af2d-484d-a44f-1e23eb80d0cb Hungary | |
| 4484aeb8-e1e8-44a2-a2d9-11c9183e1c96 Croatia | |
| 16afea1e-273f-4f33-8d92-977631803272 Belgium | |
| f1980557-3c01-41e6-88ef-ba66c17bf428 Germany | |
| e69d218b-d842-43f1-b01d-8f378522606b Finland | |
| dea2595c-05f8-4055-8b39-10c180c3c600 Czech Republic | |
| c72194e6-19c3-4dc3-9fd6-5983cf5974f4 Poland | |
| cef0ce4a-6bf5-4dba-8c33-cfcc9bdbe9ae Germany | |
| 3eb9708e-80a4-42a5-b710-953f8bd32eab Sweden | |
| 875d358e-96e1-43d3-a727-783b31ddd710 Greece | |
| 4b7fa827-9cf3-427e-ae7e-807b61700f08 Denmark | |
| 5e2bfcc4-b89b-4fb6-923f-632702fd7f48 Hungary | |
| 4076dcb8-03d7-49f4-b219-7650b5cdda62 Poland | |
| 7e8127b4-ef29-48be-819b-958fb5171d6b Germany | |
| 4b7fa827-9cf3-427e-ae7e-807b61700f08 Denmark | |
| f1980557-3c01-41e6-88ef-ba66c17bf428 Germany | |
| d128fdc4-ff53-47a7-800d-2ab545094b24 Bulgaria | |
| 5c267f66-446f-430a-994c-4a21501f1699 Norway | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221079990 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 317 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 48 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 53 kg |
| Package Level 1 EAN | 8056221079990 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 1000 V AC 500 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 550 W |
| Rated Current (In) | 2500 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1000 V AC |
| 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 1000 V AC |
| 50 kA | |
| Rated Voltage (Ur) | 1000 V |
| Release | Ekip Touch LSIG |
| Release Type | EL |
| Remarks | 1000V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | No |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 2500 A |
| Rated voltage (EF003977) | 1000 V |
| Overload release current setting (EF002336) | 1000.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1500.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3750.0 A |
| Integrated earth fault protection (EF007296) | Yes |
| Type of electrical connection of main circuit (EF006819) | Connection at separate chassis part |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Connection at separate chassis part |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
