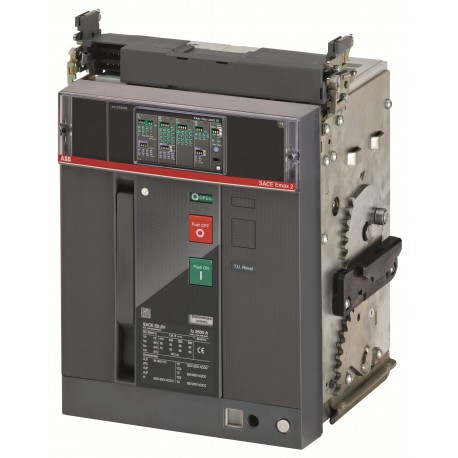

1SDA115928R1 ABB E2.2H/E10 2500 Ekip Dip LSIG 3p WMP
1SDA115928R1
115928
ABB
1 Pcs.
E2.2H/E10 2500 Ekip Dip LSIG 3p WMP
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 811967a9-381d-4885-98f1-4e94d4ba325a Italy |
| Simplified SCIP | 198c0f79-4c6c-40a8-b412-932de6ffa0e1 Germany |
| 5898d21a-6b14-48cc-9c2d-dc2ee43cd174 Germany | |
| a9c615fb-5363-4e06-9e1d-ead0770c6b27 Sweden | |
| f4c1ea69-3af3-4f7d-8272-dddfeb8fa1a9 Belgium | |
| e38a9c0e-2fce-4817-adcd-39eae192fc56 France | |
| 230aa365-08e3-4dcd-870e-f9e1b9c90291 Estonia | |
| 9d191510-7287-465f-9481-7139ca71f1d1 Finland | |
| cd02d5d6-495d-4093-8e70-4ec93ac3ff66 France | |
| ef78aa0c-26fe-4485-b829-729e7778189c Germany | |
| 2b38b113-e882-4819-a241-776a9b6501a2 Germany | |
| 38f41a45-d45c-46df-a0fb-461e0d0e9162 Spain | |
| df62a5f1-30f7-4335-8822-24865a8e3443 Belgium | |
| df74d554-efea-451f-96a0-f269df372f69 Sweden | |
| 7994c43c-50a9-4482-8190-887f531e70f8 Portugal | |
| e97ee1d3-45f2-4885-be0f-6fe2353e3dfb Bulgaria | |
| 4a447c84-f606-4f85-875c-ad8ebf33414b Greece | |
| 951aab7d-e788-41c5-8363-f52db8b2c3c8 Hungary | |
| 695dcff7-c7b1-4077-8f84-f900b33d6026 Czech Republic | |
| 097b74ef-6e87-4ce2-a358-be3db2117bc1 Poland | |
| 2da28ea1-fff7-4b31-b45a-5439a78029de Netherlands | |
| 938819cf-516b-47d0-85a0-4c9a098cc6f2 Croatia | |
| 4ca3b89e-90ee-43f9-adad-0082a3a527a4 Poland | |
| 9893232d-aa4c-4808-a908-21a936dad1c2 Hungary | |
| 69b0b289-4b5e-4f95-946b-6d4c225ab0d8 Norway | |
| b4ea09ae-2adb-4f80-be1e-19f874f39c26 Poland | |
| 52aeb9c8-e6a1-4803-a980-7d434d89580a Denmark | |
| 9a0bd2a9-5f8e-4556-9b85-5690405c8f4f Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221079983 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 317 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 48 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 53 kg |
| Package Level 1 EAN | 8056221079983 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 1000 V AC 500 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 550 W |
| Rated Current (In) | 2500 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1000 V AC |
| 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 1000 V AC |
| 50 kA | |
| Rated Voltage (Ur) | 1000 V |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Remarks | 1000V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | No |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 2500 A |
| Rated voltage (EF003977) | 1000 V |
| Overload release current setting (EF002336) | 1000.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1500.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3750.0 A |
| Integrated earth fault protection (EF007296) | Yes |
| Type of electrical connection of main circuit (EF006819) | Connection at separate chassis part |
| Device construction (EF008240) | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Connection at separate chassis part |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
