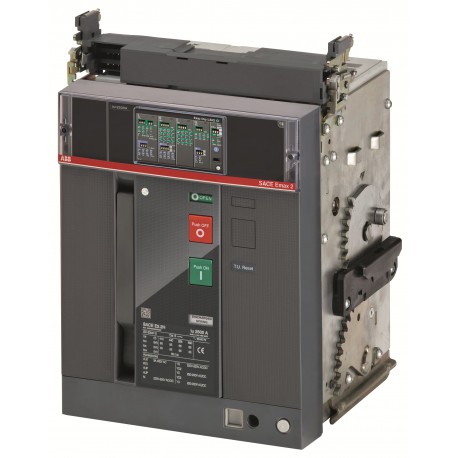

ABB 1SDA115927R1 1SDA115927R1 ABB E2.2H/E10 2500 Ekip Dip LSI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115927R1 ABB E2.2H/E10 2500 Ekip Dip LSI 3p WMP

1SDA115927R1

115927

ABB

1 Pcs.

E2.2H/E10 2500 Ekip Dip LSI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An air circuit breaker, specifically the 1SDA115927R1 ABB E2.2H/E10 2500 Ekip Dip LSI 3p WMP by Abb, provides robust overload and short-circuit protection for heavy-duty industrial power distribution frameworks. These robust switching devices interrupt high fault currents to safeguard downstream electrical machinery and ensure personnel safety in primary sub-stations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • End Of Life Disassembling Instructions: 9AKK108468A2361
  • Environmental Product Declaration - EPD: 9AKK108471A0821
  • Extended Product Lifetime: Lifetime Extension Services are Offered
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • EAN: 8056221079976
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 317 mm
  • Product Net Height: 425 mm

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
EAN8056221079976
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width317 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight48 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight53 kg
Package Level 1 EAN8056221079976
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 1000 V AC 500 cycle
30 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Power Loss550 W
Rated Current (In)2500 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage1000 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)1000 V AC
50 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)1000 V AC
50 kA
Rated Voltage (Ur)1000 V
ReleaseEkip Dip LSI
Release TypeEL
Remarks1000V
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksNo
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5902
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
