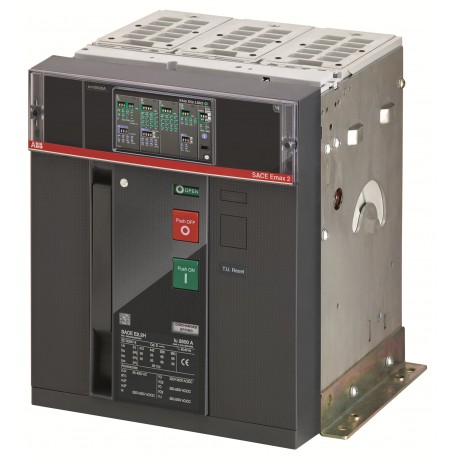

1SDA115925R1 ABB E2.2H/E10 2500 Ekip Dip LSIG 3p FHR
1SDA115925R1
115925
ABB
1 Pcs.
E2.2H/E10 2500 Ekip Dip LSIG 3p FHR
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | db93315b-04f4-42f9-be22-32bb5fd30717 Italy |
| Simplified SCIP | 9755bfb8-69b5-492a-972d-3b7e94ae3bcd Germany |
| a9df87d1-fd50-474c-bde9-c3d49c5c2c33 Sweden | |
| 14fbf255-ca2f-4c17-8c9a-ea55ea18a720 Hungary | |
| 0c02b3c3-5735-4e3b-8bd2-a5d6734e9c18 France | |
| 6b9966a4-7cd4-45fc-908a-718e81a6014f Germany | |
| dc00c7bd-6bc6-402d-beeb-e8d27c00556f Germany | |
| ac833555-9d6b-49c3-91de-0d004ae60f3e Croatia | |
| ea7469c9-44f0-4861-b605-a3417e2fc70d Netherlands | |
| b431995d-e499-4baf-9629-4401641bb686 Czech Republic | |
| a0b8cc1d-7a0f-4321-8cc1-0c0f97fabd2e Poland | |
| 25c93317-d5a3-4e14-8e0b-375cdfdde8e9 Finland | |
| 48c116ce-1eac-4a2f-b602-6ea1b598af21 Estonia | |
| b903cc25-03a9-434c-ac4d-bdc3a40cfd9c France | |
| 49134beb-f917-4c3d-b34b-2a112b259dee Belgium | |
| 1fec6002-4c62-47b2-b0b7-8b46be04c5ed Sweden | |
| 668279a1-abfd-40b3-9d76-b5e0485b4ca6 Germany | |
| 3dc89814-83ac-4884-8fe8-9afdc1138898 Denmark | |
| 52e083e8-10e0-4f9b-9b9f-ccc7e87b4d01 Germany | |
| 91c6696d-ce02-440a-8e47-2b1af8e14f61 Poland | |
| 224bc271-6884-468d-ada5-6663f9f8a7e3 Norway | |
| da6a4f20-2945-4962-b3a1-2169b3de4d6a Hungary | |
| c5aecdcb-3470-4040-b1c9-f87c18d58b41 Poland | |
| 9f199a17-6f9b-4051-8f94-ced4e26f7880 Belgium | |
| 33ab4dc4-7cec-435d-a129-6103c98fb1be Spain | |
| 614c407c-3316-405e-bd5f-e2dda3948d04 Greece | |
| 7e3800c6-5528-4d43-a285-88f8c1875df3 Bulgaria | |
| 0b7cae4f-79d0-4b92-bde9-d262cd094523 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221079952 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 46 kg |
| Package Level 1 EAN | 8056221079952 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 1000 V AC 500 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 267 W |
| Rated Current (In) | 2500 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1000 V AC |
| 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 1000 V AC |
| 50 kA | |
| Rated Voltage (Ur) | 1000 V |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Remarks | 1000V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | No |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 2500 A |
| Rated voltage (EF003977) | 1000 V |
| Overload release current setting (EF002336) | 1000.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1500.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3750.0 A |
| Integrated earth fault protection (EF007296) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Back |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
