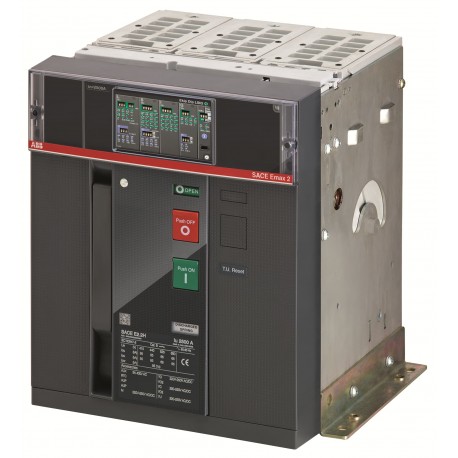

1SDA115924R1 ABB E2.2H/E10 2500 Ekip Dip LSI 3p FHR
1SDA115924R1
115924
ABB
1 Pcs.
E2.2H/E10 2500 Ekip Dip LSI 3p FHR
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | baf5af70-8cbd-4db2-a8d9-18022b89902b Italy |
| Simplified SCIP | 4f4278ec-fb80-46af-9005-ca183dd0750f Croatia |
| 515ba926-fe1b-4180-8e4a-6a4953640a5b France | |
| 45f5ce9e-7e97-4da4-880b-de6e14b5ea6d Portugal | |
| 1fbbe602-72c9-44fb-beb3-59f042daa3a1 Finland | |
| 52c9dfd5-428d-4a73-a8bd-9e8b3f05a946 Germany | |
| 27dc78a5-20f0-46e2-b59a-32fe260473c1 Norway | |
| 080d3dc5-4511-4f3c-91c8-6db1edba706f Germany | |
| 0ef11db3-4080-463a-a5a9-8bf832fec896 Greece | |
| 290454de-0428-4b60-ba55-233aa55f89b7 Bulgaria | |
| 1963b579-fd22-4e36-b055-4cdfdc0a7368 Czech Republic | |
| 3b9438d4-8d1d-478e-83fe-b196f2410504 Germany | |
| b6fb8239-d15a-40f1-bfd1-2edcb31c66fb Sweden | |
| f4337409-d24c-4eb2-808e-1bc9207f0ced Netherlands | |
| 59015763-bad2-4fc5-a05a-5cc3b85db443 Germany | |
| ec77c152-cf7f-40d0-983b-1256ed68511b Hungary | |
| f4337409-d24c-4eb2-808e-1bc9207f0ced Netherlands | |
| 14aca522-140b-4096-99c5-21a51321367d Poland | |
| 61b1b09f-e928-451f-82d5-4732b283071e Poland | |
| 45f5ce9e-7e97-4da4-880b-de6e14b5ea6d Portugal | |
| 6458442a-95f7-4c0b-9ac0-af849dd52863 Belgium | |
| 0ef11db3-4080-463a-a5a9-8bf832fec896 Greece | |
| 6458442a-95f7-4c0b-9ac0-af849dd52863 Belgium | |
| 796f3c16-ff1e-46af-bf57-15f128123023 Spain | |
| 27b5e371-976d-4484-b288-34618142bde1 Hungary | |
| 515ba926-fe1b-4180-8e4a-6a4953640a5b France | |
| 706edc87-aed8-46df-b2b8-b9b9d00e5329 Sweden | |
| 75fcf9d7-aa77-4466-a27d-337efe6721a1 Poland | |
| b6fb8239-d15a-40f1-bfd1-2edcb31c66fb Sweden | |
| 3b9438d4-8d1d-478e-83fe-b196f2410504 Germany | |
| 59015763-bad2-4fc5-a05a-5cc3b85db443 Germany | |
| 698f8beb-392b-4d5f-9d4c-ddd2085d4f95 France | |
| dc4ca783-c6c5-4ef6-931d-03f0bd6525dc Estonia | |
| 796f3c16-ff1e-46af-bf57-15f128123023 Spain | |
| ec77c152-cf7f-40d0-983b-1256ed68511b Hungary | |
| dc4ca783-c6c5-4ef6-931d-03f0bd6525dc Estonia | |
| 698f8beb-392b-4d5f-9d4c-ddd2085d4f95 France | |
| 61b1b09f-e928-451f-82d5-4732b283071e Poland | |
| 75fcf9d7-aa77-4466-a27d-337efe6721a1 Poland | |
| 1963b579-fd22-4e36-b055-4cdfdc0a7368 Czech Republic | |
| 080d3dc5-4511-4f3c-91c8-6db1edba706f Germany | |
| 706edc87-aed8-46df-b2b8-b9b9d00e5329 Sweden | |
| 14aca522-140b-4096-99c5-21a51321367d Poland | |
| e62788ad-7500-45d8-8413-dfe1807b0ac7 Denmark | |
| 27b5e371-976d-4484-b288-34618142bde1 Hungary | |
| 4f4278ec-fb80-46af-9005-ca183dd0750f Croatia | |
| ae96d58d-d761-4939-a6a4-df234ef84e21 Germany | |
| d04763e7-4fe6-4662-82b1-6d51871f5747 Belgium | |
| e62788ad-7500-45d8-8413-dfe1807b0ac7 Denmark | |
| 290454de-0428-4b60-ba55-233aa55f89b7 Bulgaria | |
| 52c9dfd5-428d-4a73-a8bd-9e8b3f05a946 Germany | |
| 1fbbe602-72c9-44fb-beb3-59f042daa3a1 Finland | |
| 27dc78a5-20f0-46e2-b59a-32fe260473c1 Norway | |
| ae96d58d-d761-4939-a6a4-df234ef84e21 Germany | |
| d04763e7-4fe6-4662-82b1-6d51871f5747 Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221079945 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 46 kg |
| Package Level 1 EAN | 8056221079945 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 1000 V AC 500 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 267 W |
| Rated Current (In) | 2500 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1000 V AC |
| 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 1000 V AC |
| 50 kA | |
| Rated Voltage (Ur) | 1000 V |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Remarks | 1000V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | No |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 2500 A |
| Rated voltage (EF003977) | 1000 V |
| Overload release current setting (EF002336) | 1000.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1500.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3750.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Back |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
