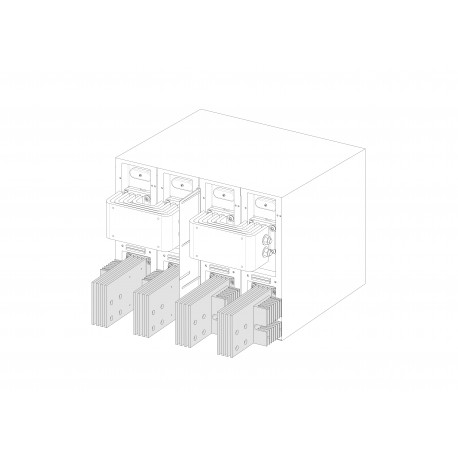

ABB 1SDA115486R1 1SDA115486R1 ABB KitJumpE4.2 2500 UL -A- 2psLS INST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115486R1 ABB KitJumpE4.2 2500 UL -A- 2psLS INST

1SDA115486R1

115486

ABB

1 Pcs.

KitJumpE4.2 2500 UL -A- 2psLS INST

Automation > Connection vane/phase spreader
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

1SDA115486R1 ABB KitJumpE4.2 2500 UL -A- 2psLS INST operates as a specialized circuit breaker accessory designed to support internal electrical bridging and terminal organization in high-capacity switchgear. These components ensure proper current path management and structural integrity in demanding industrial setups.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • EAN: 8056221075732
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Package Level 1 Units: box 1 piece
  • Package Level 1 EAN: 8056221075732
  • Product Main Type: Accessories for Emax 2
  • Product Name: Accessory
  • Product Type: Accessories
  • Configuration Type: Mounted only
  • Current Type: DC

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
EAN8056221075732
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 EAN8056221075732
Additional Information
Product Main TypeAccessories for Emax 2
Product NameAccessory
Product TypeAccessories
Technical
Configuration TypeMounted only
Current TypeDC
Number of Poles4P
Rated Insulation Voltage (Ui)1500 V
Rated Operational Voltage1500 V DC
Rated Voltage (Ur)1500 V
Short-Circuit Performance LevelN
StandardsUL
Sub-typeE4.2
Certificates and Declarations
Data Sheet, Technical Information1SDC200045D0201
Declaration of Conformity - CE9AKK106713A5545
Instructions and Manuals1SDH002083A1002
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305

Product Datasheet
