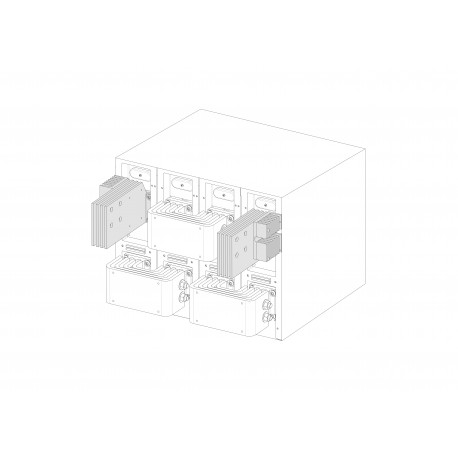

1SDA115483R1 ABB KitJumpE4.2 3200 UL -D- 4psUS INST
1SDA115483R1
115483
ABB
1 Pcs.
Automation > Connection vane/phase spreader
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An internal bridging accessory labeled 1SDA115483R1 by Abb crafted for high-capacity circuit breaker applications. Such components are utilized inside complex electrical panels to bridge internal pathways and ensure consistent power transfer across heavy industrial infrastructure.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- EAN: 8056221075701
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Package Level 1 Units: box 1 piece
- Package Level 1 EAN: 8056221075701
- Product Main Type: Accessories for Emax 2
- Product Name: Accessory
- Product Type: Accessories
- Configuration Type: Mounted only
- Current Type: DC
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221075701 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 EAN | 8056221075701 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2 |
| Product Name | Accessory |
| Product Type | Accessories |
| Technical | |
| Configuration Type | Mounted only |
| Current Type | DC |
| Number of Poles | 4P |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Voltage | 1500 V DC |
| Rated Voltage (Ur) | 1500 V |
| Short-Circuit Performance Level | N |
| Standards | UL |
| Sub-type | E4.2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200045D0201 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| Instructions and Manuals | 1SDH002083A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| ETIM 10 | EC002019 - Connection vane/phase spreader |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
