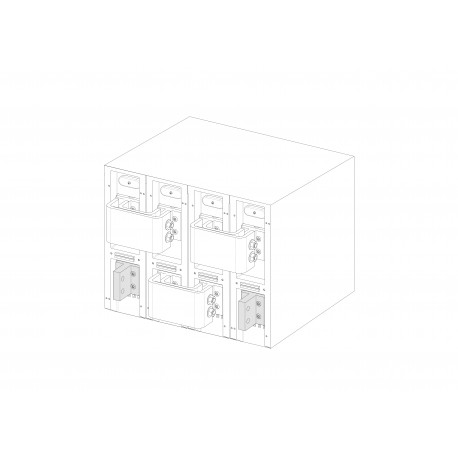

1SDA115480R1 ABB KitJumpE4.2 1600-2500IEC -C- 4psLS INST
1SDA115480R1
115480
ABB
1 Pcs.
Automation > Connection vane/phase spreader
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for industrial power distribution systems, this Abb accessory kit provides the mechanical connection elements needed for heavy-duty circuit breaker installations. Busbar and terminal conversion hardware ensure reliable electrical continuity and secure physical mounting inside low-voltage switchboards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- EAN: 8056221075671
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Package Level 1 Units: box 1 piece
- Package Level 1 EAN: 8056221075671
- Product Main Type: Accessories for Emax 2
- Product Name: Accessory
- Product Type: Accessories
- Configuration Type: Mounted only
- Current Type: DC
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221075671 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 EAN | 8056221075671 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2 |
| Product Name | Accessory |
| Product Type | Accessories |
| Technical | |
| Configuration Type | Mounted only |
| Current Type | DC |
| Number of Poles | 4P |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Voltage | 1500 V DC |
| Rated Voltage (Ur) | 1500 V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E4.2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200045D0201 |
| Declaration of Conformity - CE | 9AKK107992A0071 |
| Instructions and Manuals | 1SDH002083A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| ETIM 10 | EC002019 - Connection vane/phase spreader |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
